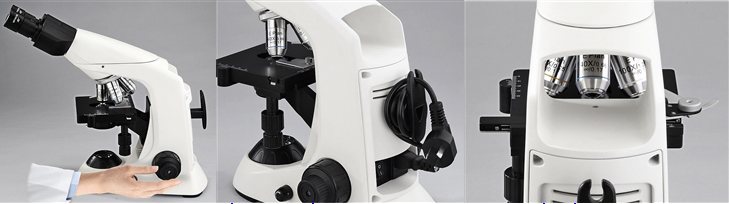

1. Perfect ergonomic design, low position focusing knob can satisfy users laying their hands on the desk for
long time operation without any fatigue.
2. New design cable roller at back side makes it easy to carry or for storage.
3. Back side window makes users easy to see the magnification change.
MIC-300i Series Biological Microscope Outfits
|
Items |
Specification |
MIC-302i |
MIC-303i |
|
Eyepiece |
WF10X/20mm |
●● |
●● |
|
WF16X |
○○ |
○○ |
|
|
Infinity Objective |
ECONOMIC PLAN 4X/0.10 |
● |
● |
|
ECONOMIC PLAN 10X/0.25 |
● |
● |
|
|
ECONOMIC PLAN 40X/0.65(S) |
● |
● |
|
|
ECONOMIC PLAN 100X/1.25(S，Oil) |
● |
● |
|
|
PLAN 4X/0.10 |
○ |
○ |
|
|
PLAN 10X/0.25 |
○ |
○ |
|
|
PLAN 20X/0.40(S) |
○ |
○ |
|
|
PLAN 40X/0.66(S) |
○ |
○ |
|
|
PLAN 60X/0.80(S) |
○ |
○ |
|
|
PLAN 100X/1.25(S，Oil) |
○ |
○ |
|
|
PLAN 100X/1.15(S，Water) |
○ |
○ |
|
|
Observing Head |
Seidentopf Binocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm |
● |
|
|
Seidentopf Trinocular Head, Inclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mm |
|
● |
|
|
3MP built in integrated digital head |
○ |
||
|
5MP built in integrated digital head |
○ |
||
|
Nosepiece |
Quadruple nosepiece |
● |
● |
|
Mechanical Stage |
Size 125mmX120mm, Travel Range:76mmX30mm, Scale:0.1mm |
● |
● |
|
Size 145mmX140mm, Travel Range:76mmX52mm, Scale:0.1mm, Two Slide Holder |
○ |
○ |
|
|
Abbe Condenser |
N.A.1.25，With iris Diaphragm |
● |
● |
|
Coaxial Coarse and Fine Focusing Knobs |
Coarse Focusing Travel Range:25mm Fine Focusing Travel Range: 2µm/division |
● |
● |
|
Aspheric Illumination |
3W LED Illumination，Voltage: 100V-240V |
● |
● |
|

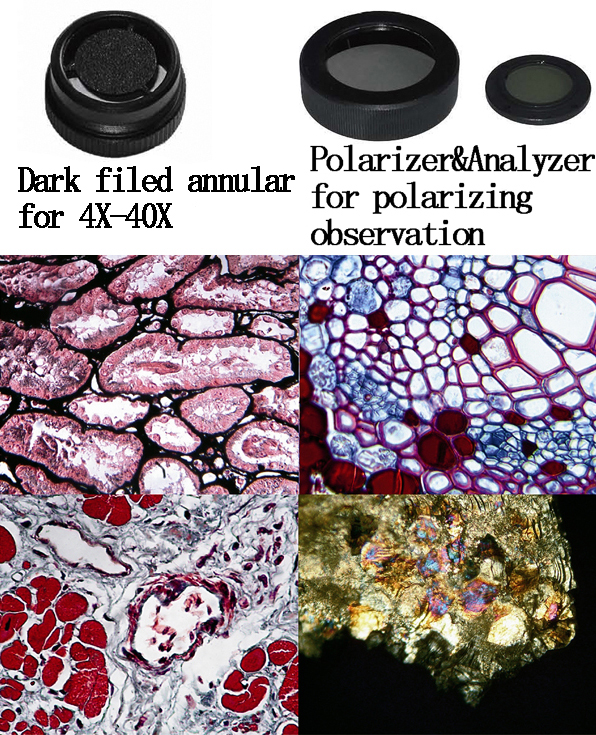

Dark Field Unit |
Dark Field Ring (Dry, N.A.0.9) |
○ |
○ |
|
Polarizing Unit |
Analyzer, Polarizer |
○ |
○ |
|
C-mount |
1×C-mount（Available for Digital Photography） |
|
● |
|
0.5×C-mount（Available for Digital Camera） |
|
○ |
|
|
Cable roller |
|
● |
● |
MIC-300id320/ MIC-300id500 Integrated Digital Microscope Specification:
|
Model |
MIC-300id320 |
MIC-300id500 |
|
Digital Chip |
3.2MP, 1/2 ", color CMOS |
5MP, 1/2.5 ", color CMOS |
|
Resolution |
2048×1536 Pixels（Maximum） |
2952×1944 Pixels（Maximum） |
|
Frame Rate |
15～30 fps |
15～30 fps |
|
C-mount |
0.5× |
|
|
Data Transmission |
USB2.0，Transmission rate: 480mps， external power supply is not necessary |
|
|
Operating System |
Available for Windows 2000 / XP / 7 |
|
|
Image Analysis Software |
Digital Image Analysis software for microscope |
|
|
Integrated body with digital head, dust-proof, moisture proof and anti-demolition |
||
Note:
“●” in the table is standard attachment. “○” is optional accessories.
