Main parameters

Total magnification

100X~400X(standard)

Mechanical tube length

∞

Conjugate distance of objective

∞

Eyepiece

Wide-field eyepiece

WF 10X

field of view numberФ22mm

Eyepiece interface

Ф30mm

Parfocal distance

10mm

Centering telescope

Trinocular

Inclination 45°，can be shot in 100% light flux，interpupillary distance：48 ~75mm

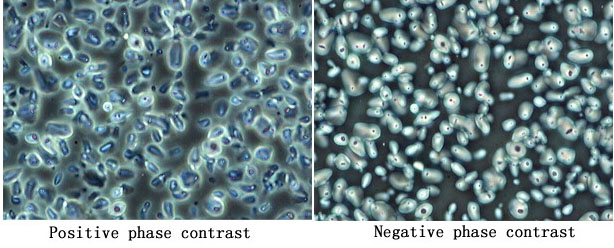

Phase-contrast Objective

magnification

N.A

Work distance（mm）

Thickness of cover glass (mm)

Remarks

10X

0.25

19.4

1.2

 Remark“PHP2”

20X

0.40

8.0

1.2

Remark“PHP2”

40X

0.60

3.5

1.2

Remark“PHP2”

objective

10X

0.25

19.4

1.2

Nosepiece

Quintuple

Focus system

Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. Effective distance.8mm

Condenser

Long working distance condenser, working distance:70mm, and with pull board phase contrast unit

Stage

Mechanical Stage, size:300mm×170mm；moving range:75mm(longitudinal)X132.5mm(transverse),

Culture dish size

circular：Ф28mm～100mm，Thickness≤1.2mm

quadrate：W≤100mm,L≤130mm, Thickness≤1.2mm

Phase-contrast condenser

Sliding phase contrast equipment ,center adjustable

Illumination

5W LED, adjustble brightness

Filter

Frosted grass and blue ，yellow 、green filter

Accessory

 hexagonal socket wrench（M4）
