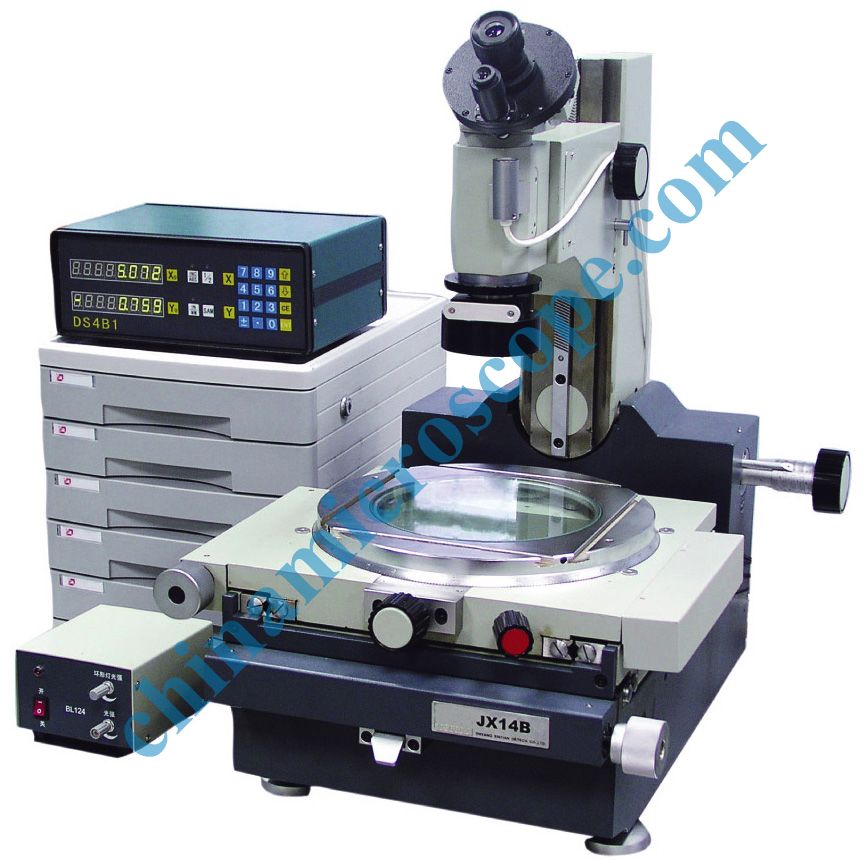

MIC-JX14B digital large scale toolmaker’s microscope

Characteristics:

1. The photoelectrical technique is adopted, with a precision grating rule as a measurer for X- and Y- axis as a measurer, with readings direct-viewing and testing convenient.

2. With multiple eyepieces and objectives, the main microscope has a large scope of view field with clear image formation

3. The main microscope can oscillate left and right, suitable for the measurement for spiral pats.

4. LED-luminotron lighting is adopted for transmission and indirect lighting, with low heating power and long life.

5. High speed and micro-motion devices are adopted which can be switched over quickly.

6. The tailstock rack is installed to measure the axel-type parts

7. Multiple accessories are provided, with extensive uses.

Technical Parameter

Worktable:

Measuring stroke of the coordinate

Stroke of measurement: X-coordinate:150mm    Y-coordinate:75mm

Measuring resolution ratio of X- and Y-coordinate measurement:0.001mm

Accuracy of the instrument: (2+L/50)μm, of which L=measured length unit:mm

Diameter of the circular worktable: Φ190mm(glass)  Φ280mm(metal)

Angular calibrated range of the circular worktable: 0°--360°

Measured angle resolution ration of the circular worktable: 3′

Microscope upright column

Sloping scope:±12°  Calibrated value of the slope angle:: 30′

Goniometric eyepiece:

Angular calibrated range: 0°--360°

Angular calibrated value: 1′

Template eyepiece

Calibrated range of the template eyepiece:±7°

Angular calibrated value of the template eyepiece: 10′

Optical detector

Minimum detective hole diameter of the optical detector: Φ5mm

Maximum detective depth of the optical detector:15mm

Measuring power: 0.1N

Tailstock Frame

Maximum clamping diameter: Φ70mm

Maximum clamping length:190mm

V-Type Support

Permissible maximum diameter of a work piece:130mm

Objective

Maximum load of the instrument: 20KG

Overall size of the main machine of the instrument:  (LxBxH)=720x460x600

Weight of the main machine: 100KG
