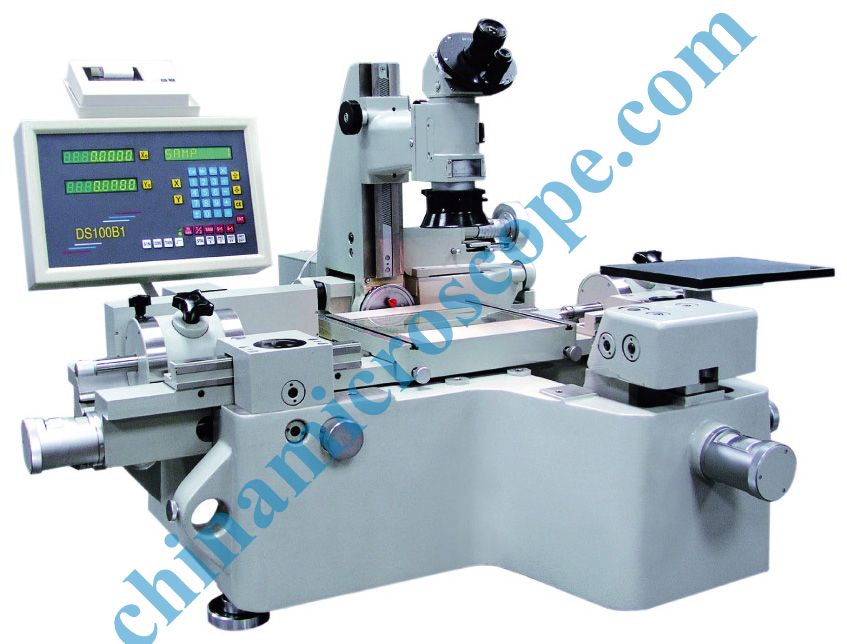

MIC-JX11B Digital Multipurpose toolmaker’s microscope
Characteristics:
1. The master microscope is equipped with multiple eyepieces and objectives, with large field view and sharp image.
2. The photoelectric and digital technology is adopted, taking the precision grating scale as sensory element, with high accuracy of measurement.
3. The master microscope can out-beat left and right, suitable for the measurement of helical parts.
4. The transmission and indirect lighting can measure profile and the surface sizes
5. High-speed movement and vernier arrangement are installed and can be switched over speedily.
6. Multiple accessories of tailstock, V-type support, height-measuring device and etc, with wide use range.
Technical Parameter
Worktable:
Range of measurement
X-coordinate:200mm Y-coordinate:100mm
Resolution ratio of X- and Y-coordinate measurement:0.002mm
Accuracy of the X- and Y- coordinate: (1+L/100)μm, of which L=length of the measured work piece, unit: mm
Area of square worktable (mm) 260x270
Maximum height of the stored work piece on the square worktable (mm): 140
Microscope upright column
Angle tilting range:±12° Angle tilting division value: 30′
Tailstock
Maximum diameter gripped by the tailstock: Φ100mm
Maximum length gripped by the tailstock:700mm
Higher Tailstock
Maximum diameter gripped by the higher tailstock: Φ250mm
Maximum length gripped by the higher tailstock:200mm
Digital display index head
Angle measuring range: 0°--360°
Resolution ratio of the angle measuring: 5〃
Accuracy of the angle measuring: 30 〃
Objective
|
Magnification |
1X |
3X |
5X |
|
Gross magnifying power |
10X |
30X |
50X |
|
Objective working distance |
79mm |
69mm |
49mm |
|
Objective visual field |
20mm |
6.7mm |
4mm |
Double-image objective
|
Magnification |
1X |
3X |
5X |
|
Gross magnifying power |
14.7X |
42X |
65X |
|
Objective working distance |
36mm |
64mm |
48mm |
|
Objective visual field |
13mm |
4.6mm |
2.9mm |
Optional position indicator
Minimum detection aperture:Φ5mm
Maximum detection depth:15mm Metering force: 0.1N
Locating stability:0.001mm Limit error gauged for head diameter:0.0005mm
Maximum load of the instrument: 40KG
Overall size of the main machine of the instrument: (LxBxH)=1300x1250x800
Weight of the main machine: 450KG
Ambient environment of the instrument service: room temperature: 20℃±1℃
Relative humidity: Not more than 60%
