This toolmaker’s microscope manufactured by Chongqing MIC Technology Co.,Ltd are divided into large scale and universal toomaker. According to the characteristics of products performance. Toolmaker microscope are divided into various types: those with graduation readout type, or with digital display type, with software processing, with CCD and image software processing and etc. They have high measuring accuracy and can satisfy the requirement of different clients.

Toolmaker’s microscope can accurately measure size, angles, forms and positions of various work pieces and varied parameters of the screw-thread manufactured pieces. It is widely used in the measurement and checking services in the sectors of machinery, instrumentation, die equipment manufacturing, instrument and metering, military industry, aviation and aerospace industry and automobile manufacturing, electronics, plastics and rubber etc, or in colleges and universities, research institutes. This instrument with multiple accessories of optical locator, tailstock rack, double-image eyepieces, template eyepieces, etc. Can be used for the quality detection and control for machinery parts, measuring tool, pattern die, electronic elements, circuit board, presswork, plastic and rubber products etc.

Typical measured targets are:

1. Measuring the diameter, length, angle, location of holes, ect, of various metalworking, punching and plastic pieces.

2. Measuring the forms of various shaped parts, such as sample plates, forming tools, formed cutters, punching dies and cams.

3. Measuring the intermediate coarse and minor diameter, pitch tooth profile, semi-angle of the eternal screw-threads for the closing screw gauge, leading screw, worm, etc.

4. Measuring the lead, saw-shaped and tooth-profile angle of the gear hobber.

5. Measuring the wire length, width, distance on the printed circuit board and the size and location of the component’s welding holes

6. Measuring 2-D allowable shape-position tolerances.

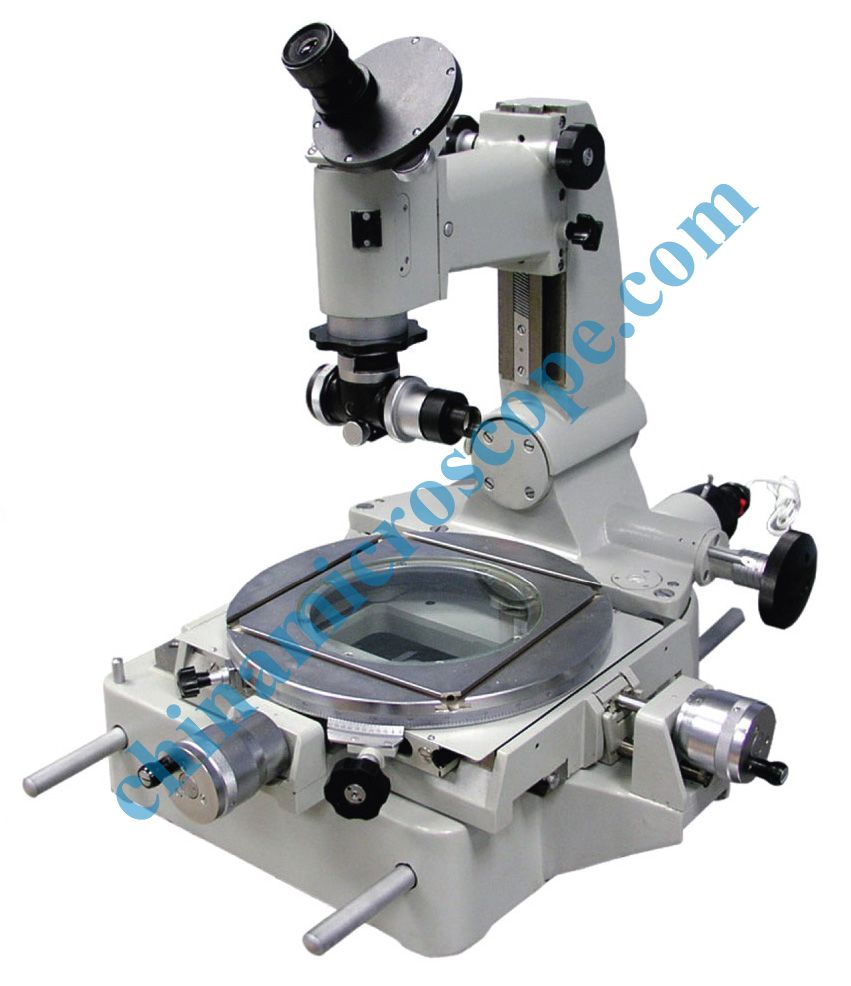

MIC-JX6 large scale toolmaker’s microscope

Characteristics:

With multiple eyepieces and objectives, the main microscope has a large scope field of view with clear image formation.

The main microscope can oscillate left and right, suitable for the measurement for spiral parts.

With and indirect lighting device, this instrument can measure the surface form of a work piece

With multiple accessories of optical positioner, tailstock frame and ect. This instrument is widely used in many ranges.

Technical Parameter

Measuring range:

Longitudinal stroke: Application micrometer:0--25mm

                 Application micrometer and measuring block: 0--150mm

Horizontal stroke: Application micrometer:0--25mm

               Application micrometer and measuring block: 0--50mm

Crossbar micrometric division value:0.01mm

Measuring range of the circular worktable: 0°--360°

Angular division value of the circular worktable: 3′

Microscope upright column

Sloping scope:±12°

Calibrated value of the slope angle: 30′

Goniometric eyepiece

Angular calibrated range: 0°--360°

Angular calibrated value:1′

Template eyepiece

Calibrated range of the template eyepiece: ±7°

Angular calibrated value of the template eyepiece: 10′

Optical detector

Minimum detective hole diameter of the optical detector: Φ5mm

Maximum detective depth of the optical detector:15mm

Measuring power 0.1N

Tailstock Frame

Diameter smaller than Φ39mm    Maximum gripping length:315mm

Diameter smaller than Φ85mm    Maximum gripping length:235mm

V-Type Support

Permissible maximum diameter of a work piece:130mm

Objective

Maximum bearing workpiece weight by the instrument:20KG

Overall sizes of the instrument mainframe (mm)  600x900x550

Main frame weight:90KG
