MIC-80 Biological microscope technical specification

technical specification

model

MIC-80-M

MIC-80-B

MIC-80-T

optical system

195 achromatic plan optical system

○

○

195 achromatic optical system

●

●

●

total magnification

40X～1600X

●

●

●

viewing head

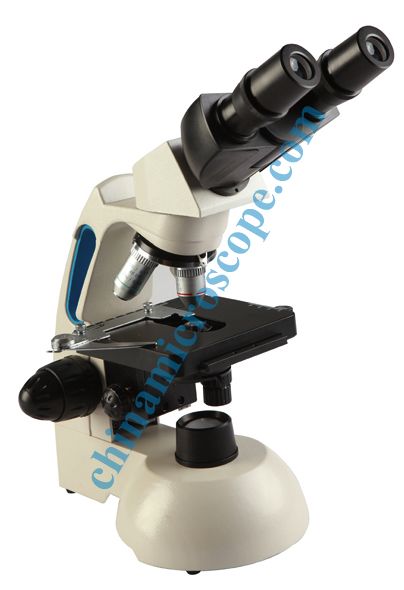

articulated binocular head,30°inclined,360° rotated, interpupillary distance :55-75mm

●

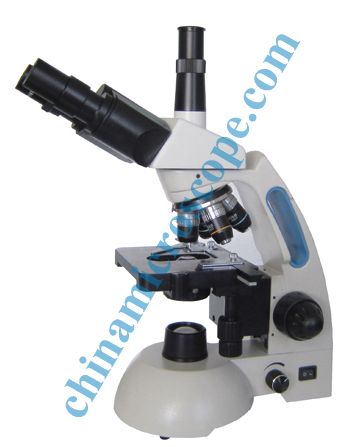

articulated trinocular head,30°inclined,360° rotated, interpupillary distance :55-75mm

●

monocular head: 30° inclined

●

eyepiece

diopter adjustment wile-field eyepiece :WF10X/18mm

●

●

●

diopter adjustment wild-field eyepiece :WF16X/15mm

○

○

○

nosepiece

revolving quadruple nosepiece

●

●

●

objective

195 achromatic objectives:4X,10X,40X（S）,100（O,S）

●

●

●

195  achromatic plan objectives:4X,10X,40X（S）,100（O,S）

○

○

○

mechanical stage

125x115mmdouble layer mechanical stage, moving range76mm(X)x50mm（Y）with double section clamp

●

●

●

focusing

Coaxial focus system with upper limited and tension adjustment; coarse adjustment range:25mm, fine adjustment precision:0.002mm

●

●

●

Condenser

N.A.1.25swing-out condenser, Move up and down, the center adjustable with  iris diaphragm

●

●

●

illumination

1W LED illumination, brightness adjustable

●

●

●

filter

yellow, green, blue, neutral color filter

●

●

●

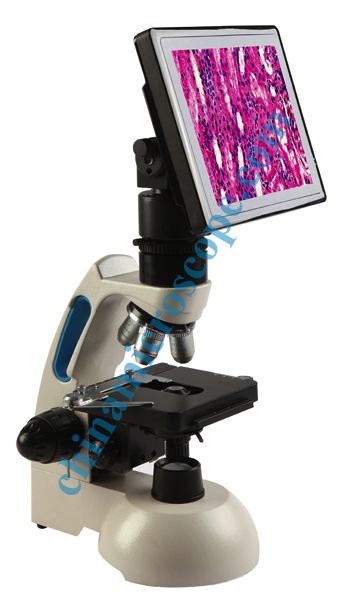

MIC-80-V  Series Integrated digital microscope technical specification

Technical Specification

Model

MIC-80-V

Optical System

195 achromatic plan optical system

○

195 achromatic optical system

●

Viewing Head

8〃Touch screen(1024 x768)LCD： 360°@Flip Horizontal, 90°@Flip ertical。

●

Camera

2.0 color pixels camera  15fps @ 1024×768

●

Software

Acquisition / measurement function

●

Operating system

Android4.1.1

●

CPU

Dual core 1.5GHz

●

Memory card

1G (DDR3)

●

Storage

The built-in 5GB memory card or an external SD card

●

The output port

HDMI ，USB2.0，Mini USB2.0

●

Video power

Input：AC 110V-220V，Output：DC 5V

●

Nosepiece

Evolving quintuple nosepiece

●

Objective

195 achromatic objectives:4X、10X、40X（S）、100（O，S）

●

195  achromatic plan objectives:4X、10X、40X（S）、100（O，S）

○

Mechanical stage

125x115mmdouble layer mechanical stage, ,moving range70mm(X)x30mm（Y），with double section clamp

●

Focusing

Coaxial focus system with upper limited and tension adjustment; coarse adjustment range:25mm, fine adjustment precision:0.002mm

●

Condenser

N.A.1.25swing-out condenser，Move up and down, the center adjustable with  iris diaphragm

●

Illumination

1W LED illumination, brightness adjustable

●

Filter

Yellow, Green, Blue, Neutral color filter

●
