MIC-2000i super contrast high level lab microscope specification

Head

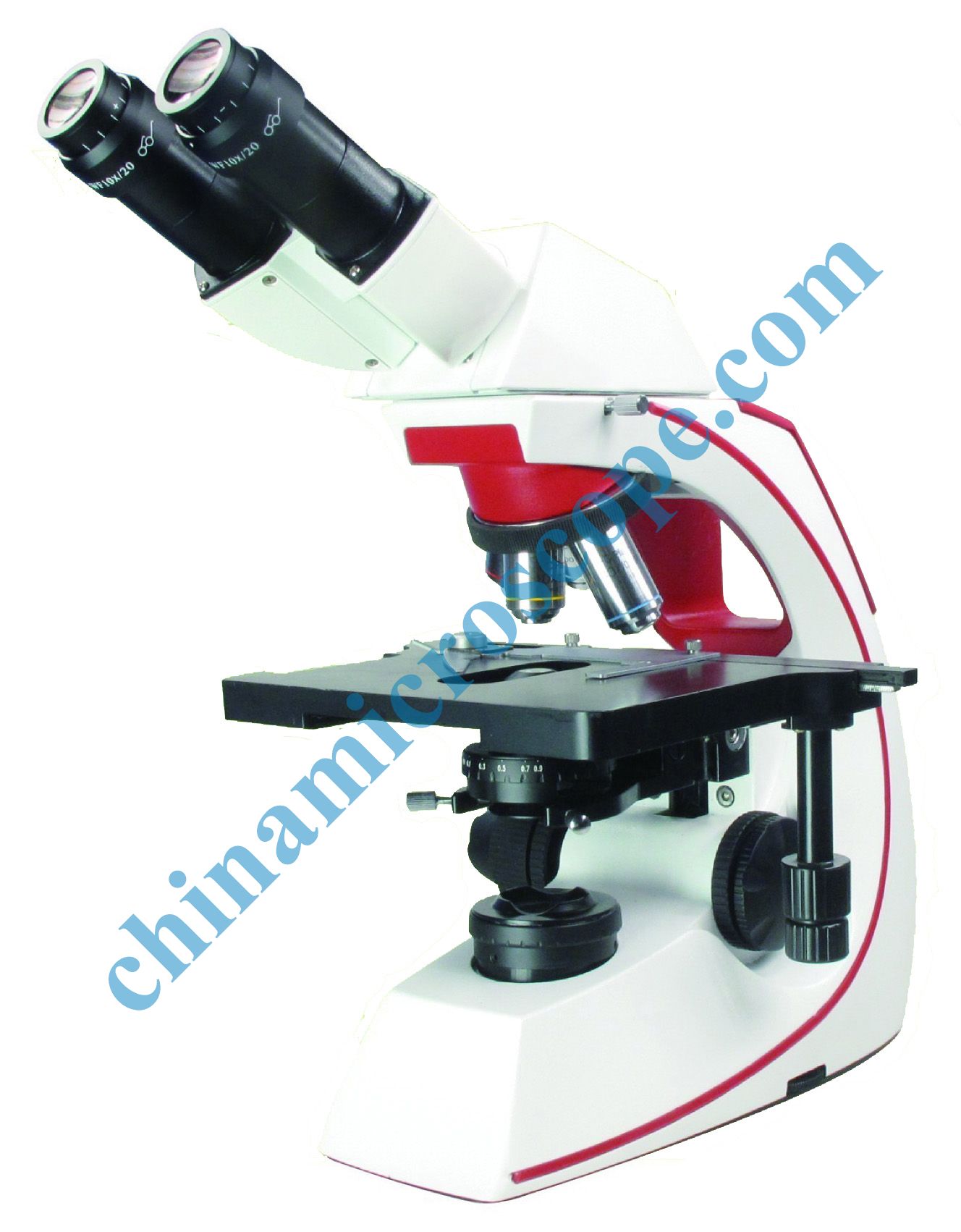

Infinite Seidentopf binocular head, 30°inclined, 360°rotatable, interpupillary distance 55-75mm

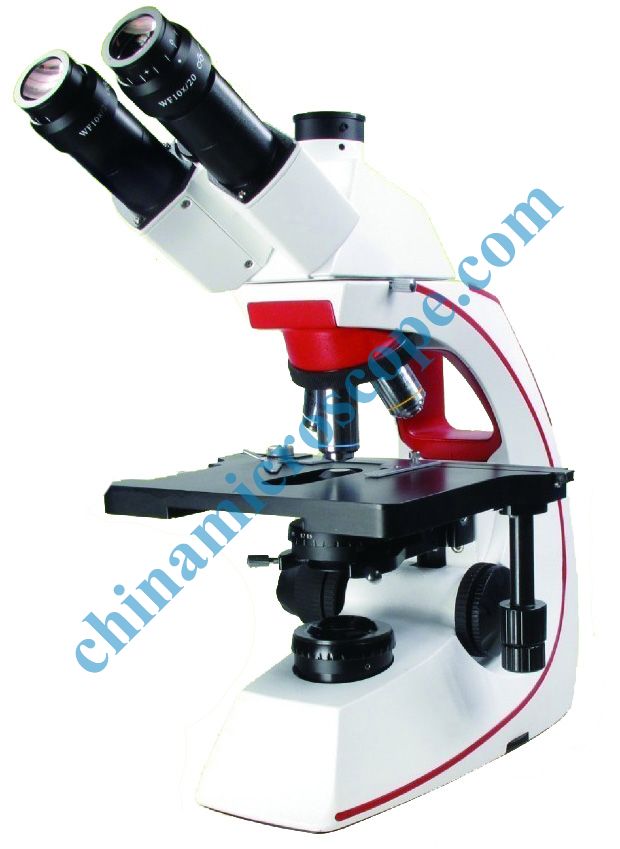

Infinite Seidentopf trinocular head, 30°inclined, 360°rotatable, interpupillary distance 55-75mm

Digital head: Build in CCD or CMOS camera

Eyepiece:

High eyepoint, wide field, diopter adjustable, WF10X/Φ22mm, WF10X/Φ20mm, WF16X/Φ16mm

Objective:

Infinite Plan achromatic super high contrast objective 4X, 10X,20X(S),40X(S),60X(S),80X(S),100X(SO),100X(Water), 100X(Dry)

Infinite Semi-Plan achromatic super high contrast objective 4X, 10X,20X(S),40X(S),60X(S),80X(S),100X(SO),100X(Water), 100X(Dry)

Nosepiece

Inner Inclined Quadruple Nosepiece

Inner Inclined Quintuple Nosepiece

Focusing

Coaxial coarse and fine focusing, easy operation, focus tightness depends on you, coarse focus range:25mm, fine focus:0.002mm

Stage

Double layer mechanical sliding stage: triangle iron moving up and down

Area:200mm×160mm, moving range:76mm(X)×54mm(Y), with two slice clip

Condenser

ABBE N.A=1.25 with iris diaphragm, moving up and down, center adjustable with filter holder and dark&phase contrast plug

Illumination

Kohler illumination, view aperture adjustable

Lamp

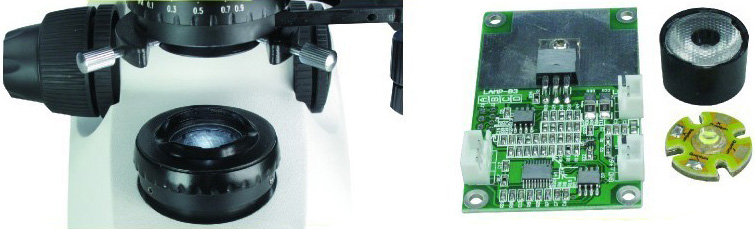

LED 3W/1Astep-less adjustable light, no screen flashing

Halogen lamp 6V/30W, step-less adjustable light, no screen flashing

Both light in the microscope and switchable

Power

Input AC90V-246V, wide voltage, output: DC 6V, with plenty of worldwide plug

Dark field condenser

Simple dark filed plug-in board

Dry dark filed condenser

Oil dark field condenser

Phase contrast device

Phase contrast plug-in board

Multifunctional turntable phase contrast condenser

Infinite semi-plan achromatic phase contrast objectives

Infinite Plan achromatic phase contrast objectives

Fluorescence device

Power supply device

High voltage sphere mercury lamp

Fluorescence exciter: B,G,V,UV optional

Polarizing device

Polarizer filter

Professional polarizer microscope of this model optional
