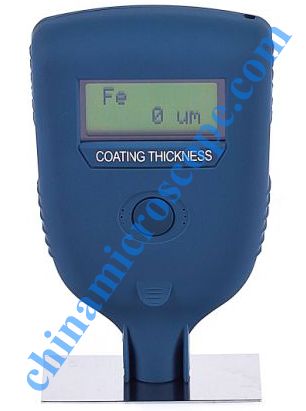

Coating Thickness Gauge MIC-L252

Operating principle

Magnetic induction (F1) or Eddy curren (N1)

Measuring range

0~1250μm

Accuracy

±[（1~3%)H+1]

Low range resolution

0.1μm

Min curvature of the min area (mm)

Convex5

Concave20

Diameter of the min area (mm)

Φ10

Critical thickness of substrate (mm)

0.5

Operating temperature

0℃~40℃

Dimensions

150×55.5×23mm

Weight

120g

Power supply

AAA Alkaline battery

Standard configuration

Main unit, 2 specimens (S1,S2), 4 AAA Batteries.

Function & Feature

English menu.

One button operation.

Probe on the instrument, more compact size.

Especially for fireproof coating.

Application Fields:

Coating thickness gauge is mainly used for measuring hull, oil and gas pipeline, high pressure vessel and boiler wall thickness as well as a variety of plate thickness, can be measured material is a delegate with steel metal materials, can be plastic, nylon and other non-metallic materials.

Measuring Material:

Non magnetic coatings on magnetic substrates (such as aluminum, chromium, copper, zinc, tin, rubber, paint on the steel, iron, alloy and magnetic steel) or non conductive coating on non magnetic metal (such as rubber, plastic, paint,oxide on aluminum, copper, zinc, tin)
