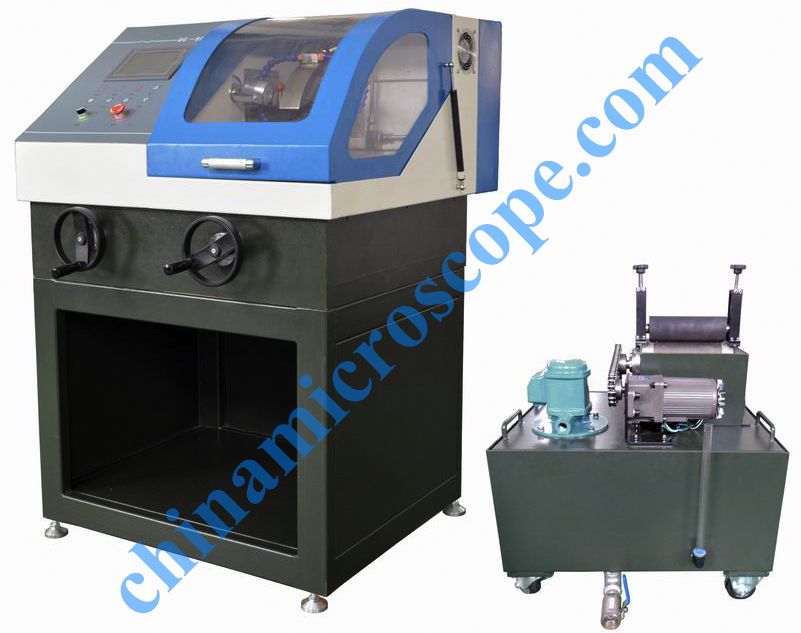

QG-90Z Metallographic Sample Cutting Machine small
Brief Introduction:
QG-90Z metallographic sample cutting machine is a precision cutting machine integrating automatic mode and manual mode.With the optional X axis worktable, it has automatic and continuous cutting function along the Y axis. With the function of adjusting the height of chief axis, it is used in a variety of shapes, sizes and materials sample cutting. The cutting capacity can meet the daily production inspection and laboratory detection for cutting samples.
Feature:
1.The chiefmotor adopts frequency conversion motor. The rotating speed adjusts from 500RPM to 3000RPM, and the speed stability won’t be changed due to the load. It meets the cutting needs of various materials.
2. The height of the chief axis can be adjusted, it adapts to small and thin diamond cutting disc or big abrasive cutting disc. It compensates the wear and tear of cutting disc, effectively improves the cutting disc and saves the cost.
3.With the optional X axis worktable, it can realize the continuous cutting along the Y axis under automatic mode.
4. With horizontal automatic or manual feed mode, flexible feed mode and large feed stroke, it can be applied to large workpiece cutting.
5. It can choose the program to control feeding for accurate feeding control.
6.With large sample observation window, it is more convenient the user to observe sample cutting process.
7. With the exhaust device, it can guarantee the efficient discharge of steam and smoke when cutting, and make the observation more clearly.
8.With LED lighting design regulation, it can realize the effective illumination of the whole area of cutting room.
9.The filter tank adopts a magnetic system, when the
circulating water goes through the magnetic system, the metal cutting debris
will be sucked out by the magnetic system and excluded out. It increases the
cutting effect of the sample and thefrequency of use of circulating water, and
avoids the blockage of the drainage system of laboratory.
Technical Specification:
|
Type |
QG-90Z |
|
Manual / Automatic grinding wheel cutting machine |
|
|
Metal shell, Explosion proof transparent observation window |
|
|
Cutting mode |
Manual cutting, Automatic cutting |
|
Cutting disc Type / Size |
Diamond、Resin ￠250、￠300mm |
|
Spindle speed |
500-3000rpm |
|
Lifting stroke of main cutting shaft |
50mm |
|
Lifting method of main cutting shaft |
Slewing hand wheel control |
|
Size of mounting hole of cutting disc |
￠32mm |
|
Stainlessflange plate |
￠80mm |
|
Rapid cutting disc replacement |
|
|
Max. cutting ability |
Max ￠90mmRound bar |
|
Feed mode |
The motor drives the horizontal screw for cutting feed. The feed speed can be adjusted 1-40mm/min. Feed mode: Automatic mode——Automatic feeding, it will be automatically back to the start when arriving the set position. Manual mode——Slewing hand wheel control or keyboard control (motor driven, manual control). Feed method: Horizontal feed |
|
Y axis travel |
260mm |
|
X axis travel of movable table |
40mm |
|
Size of cutting platform |
Size: 435*300mm,12mmgroove T type working table |
|
Cutting fixture |
Rapid push and pull type vise, one set each for left and right operation. Jaw height:60mm. |
|
LCD touch screen and film button |
|
|
Lighting |
Built-in LED lighting |
|
Cooling system |
Three cooling water and one cleaning water |
|
External circulation tank |
88L |
|
Filtering device of water tank |
|
|
Emergency stop button |
|
|
Motor |
3KW Frequency conversion motor |
|
Power supply |
380V 50HZ |
