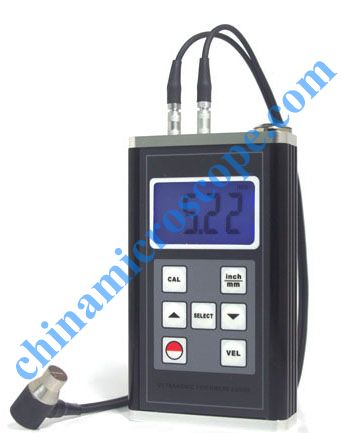

TM-8818 ULTRASONIC THICKNESS METER
Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.
* Automatic memory material code and sound velocity value, convenient to use.
* Coupling symbol indication.
* Automatic power off to conserve power.
* Use “USB data output” and “RS-232 data output” to connect with PC.
|
Case Material |
Aluminum Alloy |
|
Display |
4 Digit LCD |
|
Operating Principle |
Ultrasonic |
|
Measuring Range (metric / Imperial) |
0.9~400 mm( 45 # steel ) |
|
BatteryIndication |
LowBatteryIndication |
|
Sound Velocity |
1000~9000 m/s |
|
Lower Limit Steel Pipes |
Φ20 x3.0 mm |
|
Calibration Block |
Included |
|
Resolution |
0.01 mm / 0.1 mm |
|
Accuracy |
± (0.5%n + 0.1) |
|
Automatic memory material code and the value of sound velocity |
|
|
Power off |
Auto Power off & Manual Power Off |
|
Operating Conditions |
Temperature: 0~40 °C, Humidity: < 85 %RH |
|
Power Supply |
2 x 1.5 V AA (UM-3)Battery |
|
Dimensions |
130 x 76 x 31 mm |
|
Weight |
340 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. 5MΦ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1.6MΦ6 mmthin Material Probe: Measuring range (steel): 1.0~50.0 mmOperating temperature: -10~60℃
2.5MΦ12 mmHigh Temperature Probe: Measuring range (steel): 1.0~225.0 mm(normal temperature) Measuring range (steel) : 4.0~100.0 mm(high temperature) Operating temperature: -10~300℃
3. Curved Surface Probe
4. USB, RS-232Cdata cable with software
