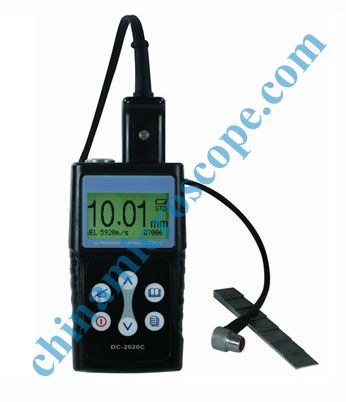

DC-2000CSERIES ULTRASONIC THICKNESS GAUGE
Product Details:
Features
● Pocket size, easy to operate
● Automatic Probe Zero Calibration
● Automatic Probe identification
● Suitable for various materials such as steel, stainless steel, aluminum, glass, polystyrene, polyethylene
● Average calculation of max 9 readings
● Limits setting Low-High
● Standard 5.0MHz transducer included, optional transducers 7.5MHz, 2.0MHz, 5.0MHz high temperature
● 9 material velocities are stored for selection, or entre the new velocity manually
● Display resolution selectable at0.1mm/ 0.01 inches and0.01mm/0.001 inches
● Memory of 5000 readings with location number (DC2020C)
Technical Specification
|
Specification |
DC2000C |
DC2020C |
|
Display：128×64 with backlight |
√ |
√ |
|
Measuring range：0.65-400mm(0.025-15.78inch) (range depends on probe-material combination) |
√ |
√ |
|
Velocity rate: 9 material velocities are stored for selection, or entre the new velocity manually (1000m/s-9999m/s) |
√ |
√ |
|
Average mode：2 to 9 times average measurement |
-- |
√ |
|
Limit setting：With Low-High indication and alarm |
-- |
√ |
|
Calibration：Auto |
√ |
√ |
|
Display Resolution：0.01mm(0.001 inch)for thickness up to99.99mm 0.1mm(0.01inch) for thickness above99.99mm |
√ |
√ |
|
Measuring units：mm/inch |
√ |
√ |
|
Memory：Memory of max.5000 readings with location number |
-- |
√ |
|
Data output：USB to PC |
-- |
√ |
|
Surface temperature：-15℃to +150℃(special probes available) |
√ |
√ |
|
Battery indicator：Low battery voltage indicator |
√ |
√ |
|
Power supply：AAA dry cell 1.5V (2 pcs.) |
√ |
√ |
|
Dimensions：115×64×27mm |
√ |
√ |
|
Weight：220g including batteries |
√ |
√ |
Specification for optional transducer
|
Model |
Frequency |
Measuring range |
Diameter |
Temperature |
|
D5008 |
5.0MHz |
0.8-300mm |
Ø10.8 |
＜60℃ |
|
D5113 |
5.0MHz |
3.0-200mm |
Ø13 |
<350℃ |
|
D7006 |
7.5MHz |
0.7-50mm |
Ø8.5 |
＜60℃ |
|
D7004 |
10.0MHz |
0.65-20mm |
Ø5 |
＜60℃ |
|
D2012 |
2.0MHz |
2.0-400.0mm |
Ø16.3 |
＜60℃ |

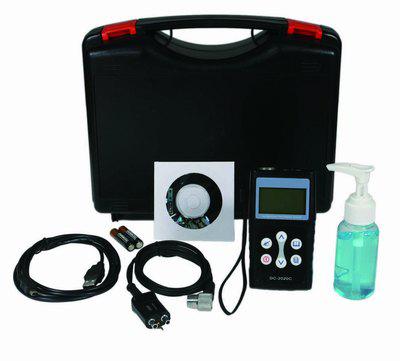

Standard Delivery
● Main unit
● Standard 5MHz transducer D5008
● Operation manual
● Two AAA batteries
● Built-in calibration block4mm
● Carrying case
● Couplant4 Oz
● Certificates
● Software and cable (DC2020C)
