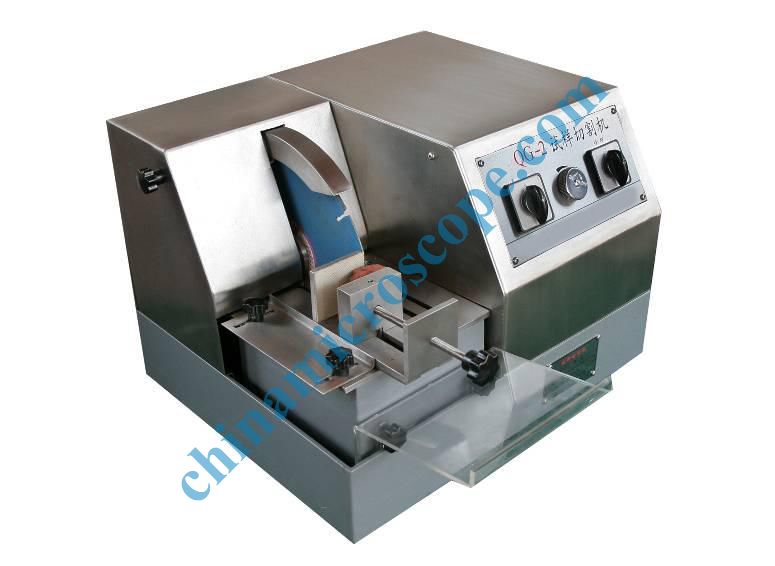

QG-2 Lithofacies Sample Cutting Machine

We all know that cut is the first working procedure in the preparation of metallographic specimen. The QG-2 Cutting Machine is suitable for the general lithic material. In order to take the sample in ultra-safe situation, the machine not only adopts totally-enclosed double-encloser structure and fast clamp device, but also has cooling water tank, which uses prepared cooling liquid circularly. For lengthening the service life of this machine and easing its operation and maintenance, the main spare parts such as encloser, grinding wheel spindle sleeve, jaw and operating platform are made of stainless steel. The machine is the best equipment for cutting sample.

Main parameters：

Maximum Cross Section of Cut：65×65mm

Platen Speed：1400 r/min

Specification of Diamond Cutting Knife：250×1×32mm

Electromotor：AS8034，1.1KW，380V，50HZ

Total Dimension：490×600×330mm

Net Weight：45KG
