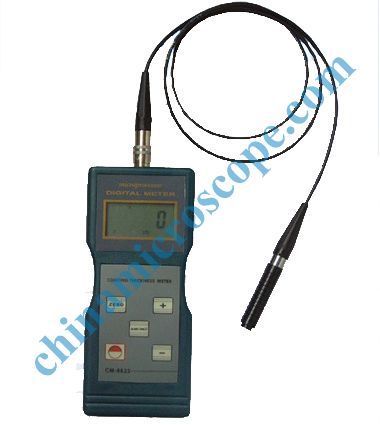

CM-8823 COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, ship building, power station, and machine manufacturing.
Features:
The N probes measure the thickness of non-magnetic coatings on non-magnetic metals.
|
Operating Principle |
Eddy Current ( NF ) |
|
Measuring Range |
0~1000 um / 0~40 mil |
|
Resolution |
0.1 um / 1 um |
|
Min. Radius Workpiece |
NF Type: convex3 mm/ concave50 mm |
|
Min. Measuring Area |
6 mm |
|
Min. Sample Thickness |
0.3 mm |
|
Accuracy |
± 1~3%n or ± 2.5 um |
|
Auto Power Off |
|
|
Metric / Imperial |
Convertible |
|
BatteryIndicator |
LowBatteryIndicator |
|
Operating Conditions |
Temp. 0~40 °C, Humidity: 10~90 %RH |
|
Power Supply |
4 x 1.5 V AA (UM-3)Battery |
|
Dimensions |
161 x 69 x 32 mm |
|
Weight |
210 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Probe (NF Type)
3. Calibration Base Set (NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
Other range 0~200um to 5000um
