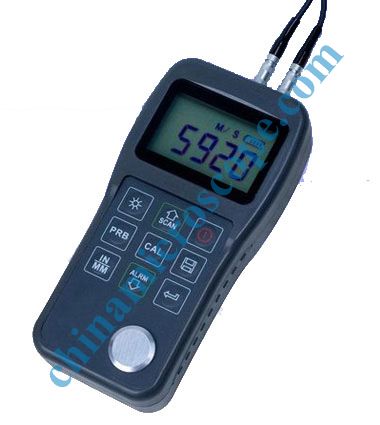

HYC160 ULTRASONIC THICKNESS GAUGE
Product Details:
Product information:
Ultrasonic Thickness Gauges are designed to improve safety and ensure reliability of material subject to corrosion or erosion.
Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..
Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).
Specifications:
|
Measuring Range |
0.75mm-300mm(in steel) |
|
Sound Velocity |
1000~9999 m/s |
|
Resolution |
0.1mm /0.01mmselectable |
|
Units |
mm/inch (selectable) |
|
Memory |
20 groups (100 files / group) |
|
Accuracy |
± ( 0.5%Thickness+0.04 ) mm |
|
Alarm |
preset upper and lower limit |
|
Work voltage |
3V( 2 AA alkaline batteries) |
|
Work mode |
Single point and scan |
|
Interface port |
RS232 |
|
Dimensions |
150mm*74mm*33mm |
|
Weight |
245g |
|
Display |
LCD with backlight |
|
Continuous working period |
100 hours (with backlight off) |
Standard Deliveries:
|
No. |
Items |
Quantity |
|
1 |
Main unit |
1 |
|
2 |
N05/90 probe |
1 |
|
3 |
Couplant |
1 |
|
5 |
Instruction manual |
1 |
|
6 |
Warranty card |
1 |
|
7 |
Carrying case |
1 |
|
9 |
Cables |
1 |
|
10 |
Batteries |
4 |
Optional Deliveries:
|
No. |
Items |
Quantity |
|
1 |
N02 probe |
1 |
|
2 |
N07 probe |
1 |
|
3 |
NHT5 probe |
1 |
|
4 |
N05 probe |
1 |
