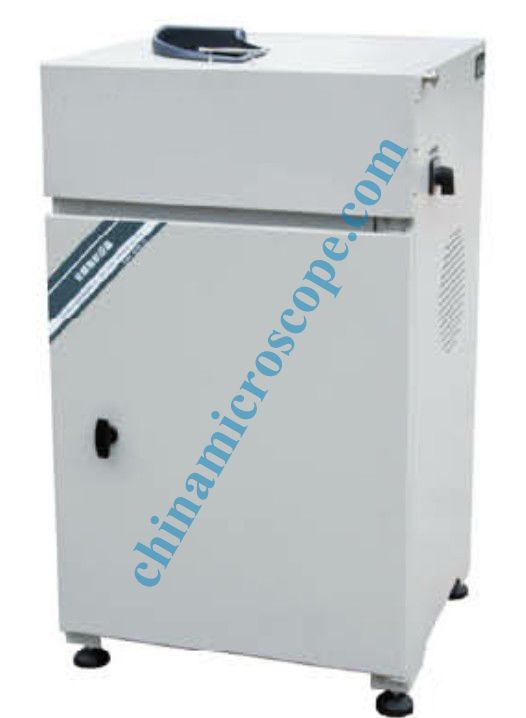

M1A model grinding machine is mainly used for the surface of spectral analysis sample and metal ceramic, glass and other devices such as polishing. The machine has compact structure, single wheel speed, grinding wheel with different grain size, hardness. This machine has a smooth rotation, low noise, convenient operation, high efficiency. It is suitable for factones, scientific research institution.

Main characteristics

Humanization design: operational plane with adjustable height and the scientific design make the grinding work piece easier.

Safety sample preparation: safe design of the sampling window and the irregular sample clamp with option protect the users’ safety.

Powerful dust: compared with the traditional dust methods, M1A has nearly 100% dust effect, convenient to collect dust, which makes your laboratory more cleaner.

High efficiency grinding: larger power motor(2KW), with two level speed makes the grinding efficiency more higher. The sample processing time is not more than 20s. Even though ther is more loads, it is still more reliable.

Technical parameter:

Grinding disc diameter: Φ400mm

Speed: 1400r/min, 2800r/min

Power supply: AC380V/50HZ/2KW

Weight: 80KG

Dimension: 590x580x1020 (mm)
