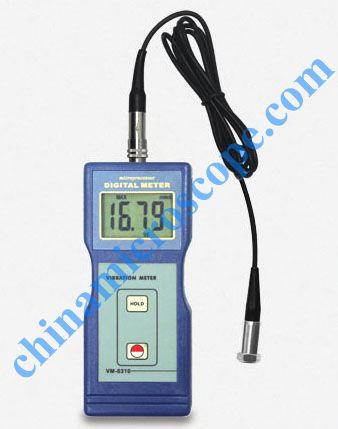

VM-6310 VIBRATION METER
Application:
This vibration meter is used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. It is specifically designed for present measuring various mechanical vibration so as to provide the data for the quality control, run time and equipment upkeep.
It uses the high-performance acceleration meter and has realized the repetitive and accurate measurement.
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
* In accordance with ISO 2954, used for
periodic measurements, to detect out-of-balance, misalignment and other
mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating
machinery for quality control, commissioning, and predictive maintenance
purposes.
* Individual high quality accelerometer for
accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Sensor |
Piezoelectric Accelerometer |
|
Measuring Range |
Velocity: 0.01~200 mm/s True RMS |
|
FrequencyRange |
Velocity: 10 Hz ~ 1k Hz |
|
Accuracy |
< 5 % |
|
Analogue Output |
AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
|
Max. Value Hold |
|
|
Power Off |
Manual Power Off or Auto Power Off |
|
BatteryIndicator |
LowBatteryIndicator |
|
Data Output |
USB, RS-232, Bluetooth |
|
Operating Conditions |
Temperature: 0~50 °CHumidity: <90 %RH |
|
Power Supply |
4 x 1.5V AA size (UM-3)Battery |
|
Dimensions |
160 x 68 x32 mm |
|
Weight |
181 g(Not Including Batteries) |
