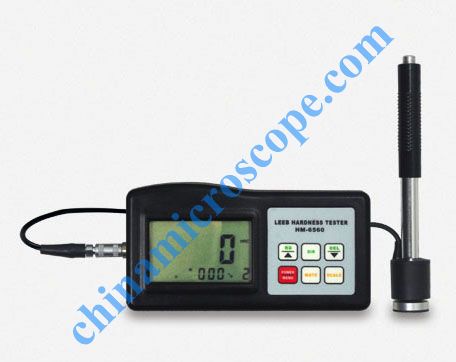

HM-6560 Leeb Hardness Tester
Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.
Features:
* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS, HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.
|
Display |
12.5 mmLCD |
|
Materials |
9 different common materials |
|
Measuring range |
200 ~ 900 HLD |
|
Accuracy |
Display error ± 0.8 % |
|
Repeatability |
± 0.8 % |
|
Conversion |
HL-HRC-HRB-HB-HV-HSD |
|
Memory |
50 data can be stored and re-readable |
|
Impact device |
D Will handle, Weight:75g |
|
Storage temperature |
-30 ~ +60 ℃ |
|
Working Conditions |
Temperature: -10 ~ +50 ℃Humidity: ≤ 90 % |
|
Power supply |
4 x 1.5 V AAA size (UM-4) battery |
|
Dimension |
120 × 62 ×30 mm |
|
Weight |
164 g(not including batteries) |
Standard Accessories:
1. Main Unit
2. Standard Test Block
3. Measurement Sensor
4. Carrying Case
5. Operation Manual
6. Small Support Ring
7. Cleaning brush
Optional Accessories:
1. Impact Body
2. Support Rings set
3. USB, RS-232Cdata cable with software
4. Bluetooth data out put with software
