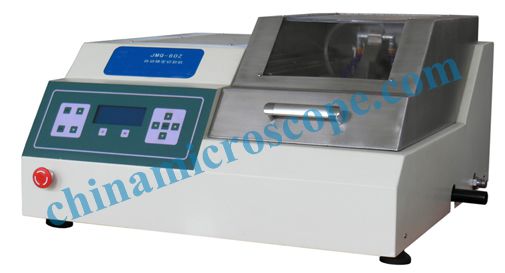

JMQ-60Z Automatic Metallographic Sample Cutting Machine

JMQ-60Z Automatic Metallographic Sample Cutting Machine is one single chip controlled cutting machine, suitable for metal, electronic component, ceramics, crystal, hard metal, rocks and minerals, concrete, organic material, biomaterial (teeth, bones and etc)for cutting without any distortion.

This machine can make continuous thin chip cutting with high precision, wide speed range, inner cycle cooling system, can prefix feeding speed, menu model controlled, LCD screen display, two position for clamping at the same time, sealed cutting space with safety switch, best and ideal machine for rock, mineral enterprises, and research institution for high quality sample making.

Main parameters:

1. Cutting speed:0-36mm/min( step size to 0.1mm)

2. Rotating speed: 300-3000r/min

3. Maximum cutting diameter :Ø 60mm

4. Maximum moving range: X axis 90mm；Y axis 200mm

5. Cutting size: 100mm;125mm;150mm;200mm

6. Cutting capacity 1100W

7. Power: 220V 50HZ

8. Dimensions (length × width × height): 730mmX765mmX410mm
