Application:
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
Features:
* In accordance with ISO 2954, used for
periodic measurements, to detect out-of-balance, misalignment and other
mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating
machinery for quality control, commissioning, and predictive maintenance
purposes.
* Individual high quality accelerometer for
accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Sensor |
Piezoelectric Accelerometer |
|
Measuring Range |
Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak |
|
Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS |
|
|
Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak |
|
|
FrequencyRange |
Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz |
|
Velocity: 10 Hz ~ 1k Hz |
|
|
Displacement: 10 Hz ~ 1k Hz |
|
|
Accuracy |
5 % ofReading+ 2 digits |
|
Metric / Imperial Conversion |
|
|
Analogue Output |
AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
|
Max. Value Hold |
|
|
Power Off |
Manual Power Off or Auto Power Off |
|
BatteryIndicator |
LowBatteryIndicator |
|
Data Output |
USB, RS-232, Bluetooth |
|
Operating Conditions |
Temperature: 0~50 °CHumidity: <90 %RH |
|
Power Supply |
4 x 1.5V AAA size (UM-4)Battery |
|
Dimensions |
124 x 62x30 mm |
|
Weight |
120 g (Not Including Batteries) |
Standard Accessories:

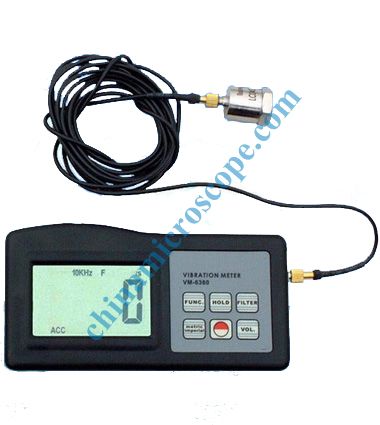

1. Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
Optional Accessories:
1. Headset
2. USB, RS-232 data cable with software
3. Bluetooth data out put with software
