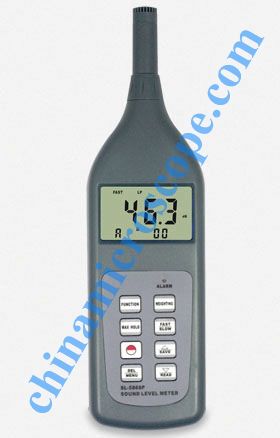

SL-5868P sound level meter
Widely used to test the sound level of environment, machinery, vehicle, ship and other noise. For industrial environmental protection, construction, health care, teaching and research department.
Features:
* Permits choice “A”, “C”, “F” weighting and “Fast” / “Slow” response times.
* Offers 4 measurement parameters: Lp (sound level); Leq (Equivalent Continuous A Sound Level ); Lmax ( Maximum Sound Level) and LN (Percent of all readings over alarm value set ).
* DC output:10 mV / d B.
* Can memorize 30 groups of measurement results and measuring conditions.
* Auto range selection and digital display with no guessing errors.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Standards |
IEC 651.2, ANSI1.4.2 |
|
|
Parameters Measured |
Lp - Sound Level |
|
|
Leq - Equivalent Continuous A Sound Level |
||
|
Lmax - Maximum Sound Level |
||
|
LN - Percent of AllReadingsOver Alarm Value Set |
||
|
Measurement Range |
Lp |
30 ~ 130 dB ( A Weighting ) |
|
35 ~ 130 dB ( B Weighting ) |
||
|
40 ~ 130 dB ( F Weighting ) |
||
|
|
Leq |
30 ~ 130 dB（ 10 Seconds, 1 Min, 5 Min, 10 Min, 15 Min, 30 Min, 1 Hour, 8 Hours, 24 Hours ） |
|
LN |
0 ~ 100 % |
|
|
Resolution |
0.1 dB |
|
|
Accuracy |
1 dB |
|
|
Frequency Weighting |
“A” / “C” / “F”（Flat） |
|
|
Time Weighting |
Fast (125 ms) / Slow (1 Second) |
|
|
Microphone |
1/2 Inch Electret Condenser Type |
|
|
Memory |
Maximum Value ( 30 Groups) |
|
|
Built in Calibration Signal |
94 dB at 1k Hz (sinusoidal) |
|
|
Frequency Range |
20 ~ 12,500 Hz |
|
|
Alarm Value Set |
30 ~ 130 dB |
|
|
Alarm Output |
LED Optional Relay Contact (NC) |
|
|
Indicator |
LowBatteryIndicator |
|
|
Power Supply |
4 x 1.5v AAA size (UM-4)Battery |
|
|
External DC Power Supply |
6 V，DC，100 mA |
|
|
Dimensions |
236 × 63 ×26 mm |
|
|
Weight |
170 g |
|
Standard Accessories:
1. Main Unit
2. Windscreen
3. Carrying Case
4. Operation Manual
Optional Accessories:
1. ND9 sound level meter calibrator
2. USB, RS-232 Data Cable With Software
3. Bluetooth Data Out put With Software
