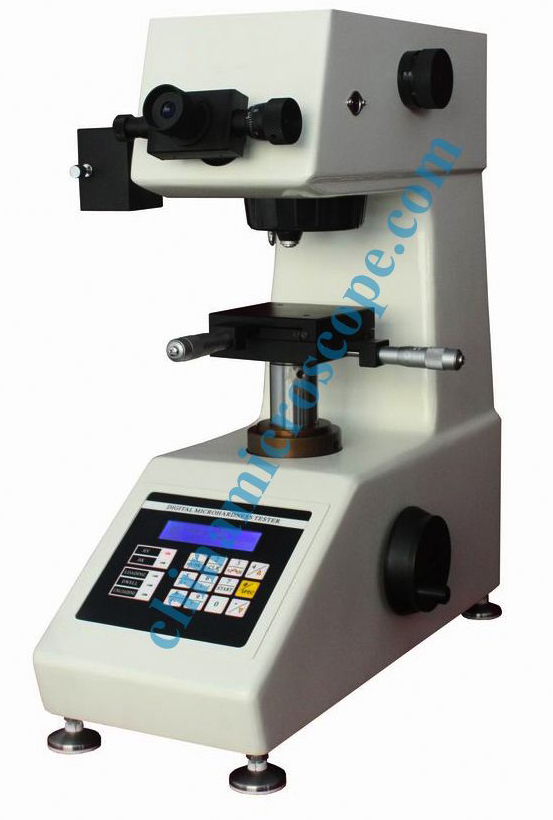

HV-1000(Z) micro hardness tester

Description:

Main Features:

HV-1000(Z) Micro Vickers Hardness Tester made with a unique and precision design in the field of mechanics, optics and light source, is able to produce a clearer image of indentation and hence a more precise measurement.
By means of a 10Χ objective and a 40Χ objective and a 10Χ microscope for measurement.
It shows measuring method, the testing force value, the indentation length, hardness value, the dwell time of the testing force, as well as the number of measurement on the LCD screen. During the operation, put in the diagonal length with the keys on the keyboard, and the built-in calculator automatically calculates the hardness value and shows it on the LCD screen.
The tester has a threaded interface that can be linked to the digital camera and CCD pickup camera.
The CCD Automatically Image Measuring Device can be equipped on present tester according to user’s requirement.
The LCD Video Measuring Device can be equipped on the present tester according to user’s requirement.
According to user’s requirement , the rester also can measure Knoop hardness value after equipping a Knoop indenter.


Technical Features:
Testing Range: 1HV~2967HV
Test Force: 0.098N(10g)、0.246N（25g）、0.49N（50g）、0.98N（100g）1.96N（200g）、4.90N（500g）、9.80N（1000g）
Max Height of the Specimen: 100mm
Max Distance from the Indenter Center to the Instrument Panel: 98mm
Lesn/indenters with: With Hand Turret HV-1000Z With Motorized Turret
Carriage Control: Automatic(loading /holding-up of the load/unloading)
Amplification of the microscope: 100×，400×
Dwell Time of the Test Force: (5-60)S
Min.Graduation Value of the Testing Drum Wheel: 0.25um
Dimension of the XY Table: 100×100mm
Movement Field of the XY Table: 25×25mm
Light source/Power Supply: 220V,60/50Hz
Weight/Gross Weight:41.5kg Net Weight: 30kg
Package Dimensions: 480×305×545mm
