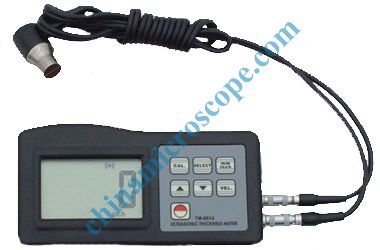

TM-8812 ULTRASONIC THICKNESS GAUGE

Product Details:

Application:

This thickness meter is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.



Specifications

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTRASONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Resolution: 0.1mm (TM8812C 0.01mm)

Accuracy: ± (0.5%n+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AA (UM-4) battery

Battery indicator: low battery indicator

Operating conditions: 0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 120x62x30mm
Weight: 164g (not including battery)



Optional Accessories:
6MФ6mm thin Material probe:

Measuring range (steel): 1.0 50.0mm

Operating temperature: -10~+60℃

5MФ12mm high temperature probe:

Measuring range (steel): 1.0~225.0mm (normal temperature)

Measuring range (steel): 4.0~100.0mm (high temperature)

Operating temperature: -10~+300℃
