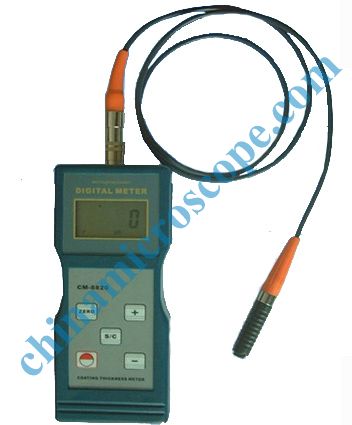

CM-8820 COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. n industries of petroleum, ship building, power station, and machine manufacturing.
Features:
The F probes measure the thickness of non-magnetic materials.
|
Operating Principle |
Magnetic Induction ( F ) |
|
Measuring Range |
0~2000 um |
|
Resolution |
0.1 um / 1 um |
|
Min. Radius Workpiece |
F Type: convex1.5 mm/ concave25 mm |
|
Min. Measuring Area |
6 mm |
|
Min. Sample Thickness |
0.3 mm |
|
Accuracy |
± 1~5%n or ±5 um |
|
Auto Power Off |
|
|
Metric / Imperial |
Convertible |
|
BatteryIndicator |
LowBatteryIndicator |
|
Operating Conditions |
Temp. 0~40 °C, Humidity: 10~90 %RH |
|
Power Supply |
4 x 1.5 V AA (UM-3)Battery |
|
Dimensions |
161 x 69 x 32 mm |
|
Weight |
210 g(Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Probe (F Type )
3. Calibration Base Set (F Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4 pieces)
5. Carrying Case
6. Operation Manual
Optional accessories:
Other range 0~200um to 15000um
