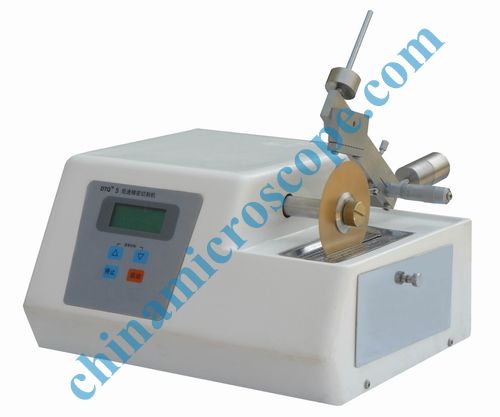

MIC-DTQ-5 low-speed precision cutter is
applicable to accurate cutting of hard materials, especially to high-value
fragile artificial crystal.
There are four kinds of fixtures, so the processed workpiece can be cut at the
optimal angle. The machine, with a limit switch, can work without a watchman.
The spindle has high accuracy of operation, the horizontal feed position of the
processed workpiece can slightly be adjusted, and the machine can be power-off
automatically after cutting is finished.
Technical Parameters
|
Item |
Index |
Unit |
|
Stroke ofMobileRack |
25 |
mm |
|
Positioning Accuracy |
0.01 |
mm |
|
Speed of Spindle |
0-600 |
r/min |
|
Diameter of Sawing Disc |
φ100～φ150 |
mm |
|
Power |
50 |
W |
|
Voltage |
~220 |
V |
|
Dimensions |
350×305×205 |
mm |
|
Weight |
18.5 |
kg |
