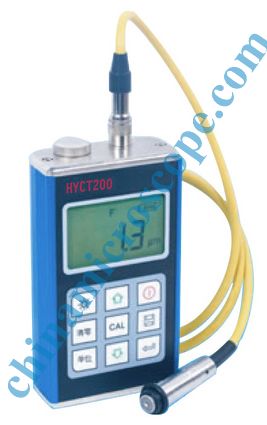

HYCT200 COATING THICKNESS GAUGE
Product Details:
Overview
This compact, handy pocket gauge is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Specifications
Measuring principle: Magnetic induction & Eddy current
Measuring range: (0～1250)μm, depends on probes. maximum
Low range resolution: 0.1μm
Accuracy：±(3%Thickness+1)μm, depends on probes and conditions
Display：4 digits LCD with EL backlight
Memory for up to 20 files (up to 50 values for each file) of stored values.
Unit system: Metric (μm)、Imperial (mil)
Power source: Two “AA” size, 1.5 Volt alkaline batteries. 200 hours typical operating time (EL backlight off).
Communication：USB1.1
Dimensions：
Weight：
Features
With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
Five types of probes (F400, F1, F10, N1,
CN02) are available for different application. F10 probe measures up to
Two measuring modes: single or continuous, changeable.
Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.
Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions.
Measuring status indicator showing the measuring status.
The gauges’ user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation.
Auto sleep and auto power off function to conserve battery life.
USB1.1 communication port. Optional software to process the memory data on the PC.
Compact aluminum case，suitable for use under poor working conditions
