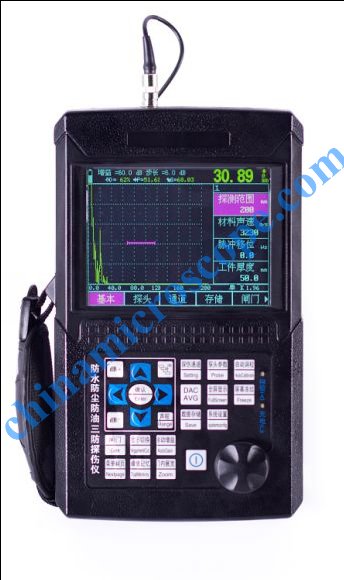

Digital Ultrasonic Detector MIC-L522

Display

Multi-color

Scanning Range(mm)

2.5-10000mm

Velocity Range

100～20000（m/s）

Vertical linearity error

≤4%

Dynamic Range

≥34dB

Horizontal linearity error

≤0.2%

Testing sensitivity

≥65dB

Storage channel

100

Storage

300

Gain Range(dB)

0~110

Weight

1.2kg

Overall dimension

240×160×40mm

TCG curve

√

B Scan

√

PC

√

Video

√

Optional Accessories

BNC cables 、PC software

Standard Delivery

Main Unit 、Straight probe 、Angle

probe 、Power adapter 、BNC cables 、PC software

Function & Feature:

●With the durable shell, oil-proof, water-proof and dust-proof;

●26 million colors ultra-bright display, adjustable brightness, suitable for both intense and low light

working environment;

● Battery with a good performance of safety and environment-friendly, can work for 10 hours.

● Time records: track and store records of testing date, time;

● With power outage protection, stored data will not be lost;

● Testing parameters can be automatically tested or preset;

● With digital suppression, no effects for the gain and linearity;

● Gain Compensation: Correcting dB attenuation caused by surface roughness, surface curvature,

distant-testing of thick piece and other factors;

● Two input methods: Angle and K values

● Echo frequency analysis

● Power indicator

● Strobe Audible and visual alarm

● DAC Audible and visual alarm

● Screen lock and unlock

● Clock display

Application Fields:

Widely used in steel, boilers, pressure vessels, aerospace, power, petroleum, chemical, marine, military,

petroleum pipeline, ship-manufacturing, automobile, machinery manufacturing, metallurgy, metal

processing, steel structure, railway transportation, nuclear power, and relevant departments in colleges

and universities.
