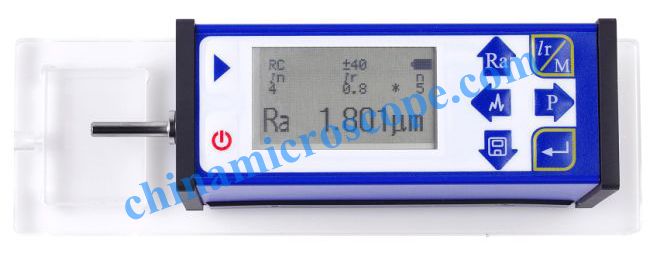

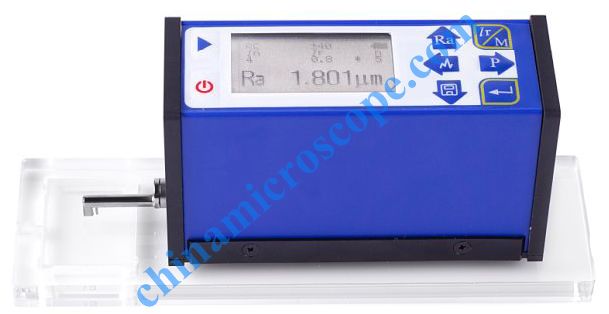

Surface Roughness Tester MIC-L450

Roughness parameter

Ra 、Ry 、Rq 、Rz 、Rt 、RSm 、RS 、Rp 、Rv 、R3z 、RSk 、Rmax 、Rmr

Resolution

0.001μm

Cut-off lengths

0.25mm/0.8mm/2.5mm

Evaluation length

1.25mm/4mm/5mm

Tracing length

6mm

Standard

ISO 、DIN 、ANSI 、JIS

Accuracy

≤±15%

Repeat ability

<12%

Sensor

Piezocrystal

Power supply

3.7V Lithium-Ion battery

Operating temperature

0 º -40 º

Weight

200g

Dimensions

106×70×24mm

Standard configuration

Main Unit,Standard sensor,Model for multi-standard groove,Power adapter

Function & Feature:

Metal case, stronger and anti-electromagnetic interference .

Adapts high speed DSP processor to get fast reaction .

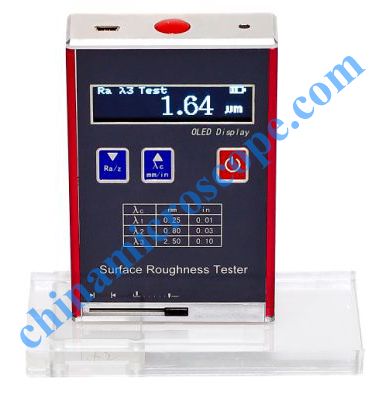

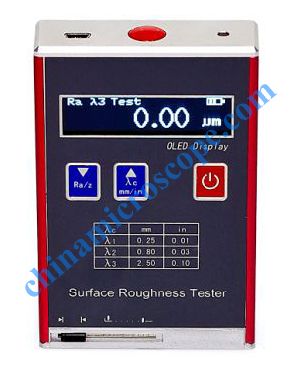

OLED color display, high light, no visual angle and wide temperature, could be used at each workplace .

Built-in lithium ion chargeable battery

USB for connecting with PC or charging .

LCD display.

Battery power shown .

Auto power off and low power consumption design .

Transducer has production gate to guarantee the accuracy of testing .

Optimized electric circuit design with transducer structure design, high integrate power, driver and display.

Select freely with Ra, Rz, Rq, Rt parameters.

It could test excircle, flat surface, conical surface and also test groove with length and width larger than 80*30mm.

Application Fields:

Mechanical processing manufacturing industry, especially metal processing manufacturing.Non-metallic

processing and manufacturing. Electricity, communications, electronics industry. Such as switches on the coupling, integrated circuits, semiconductor, etc.

It can measure kinds of machining surface, including: oil pump nozzle matching surface of cylinder head,

crankshaft, camshaft, cylinder, cylinder liner, cylinder, piston hole and surface roughness. At the same time can be applied to the PS version of measurement, online detection for setting and adjustment of the machine tool, tool wear loose or machining process.
