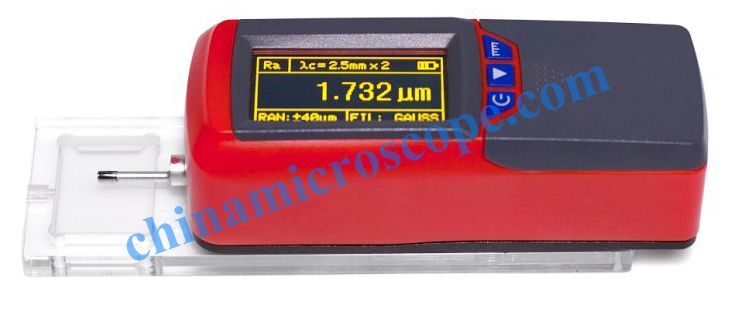

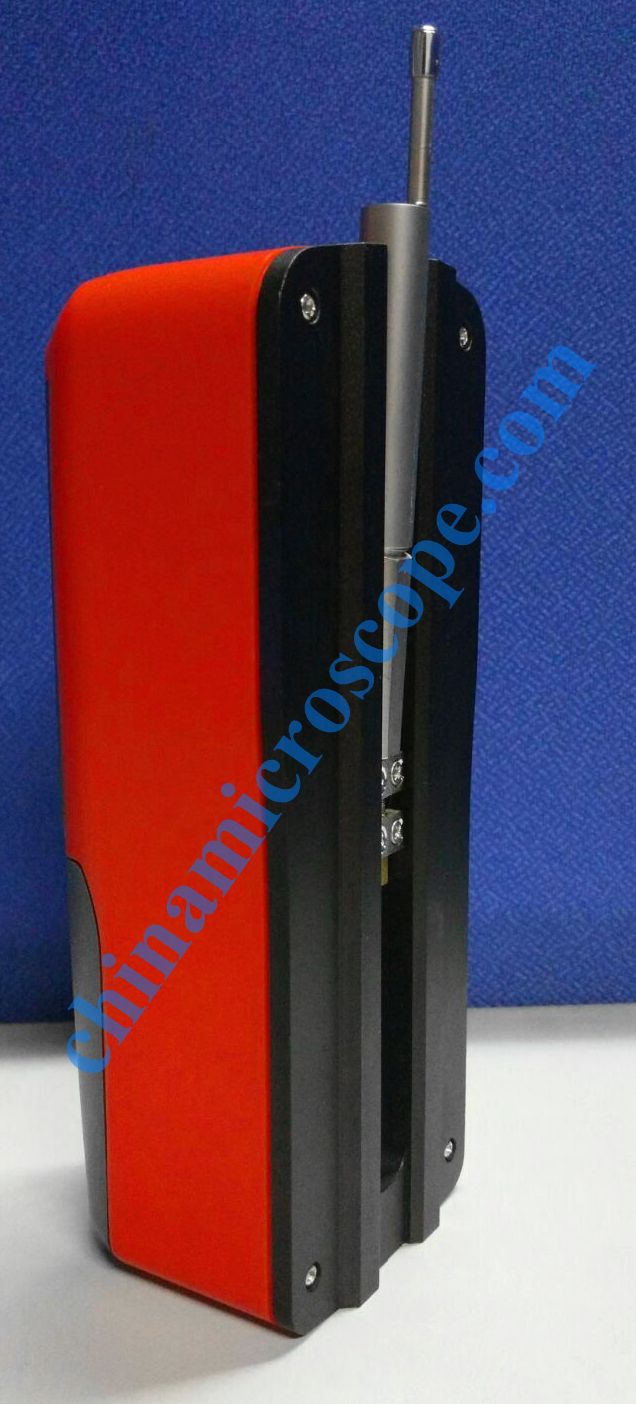

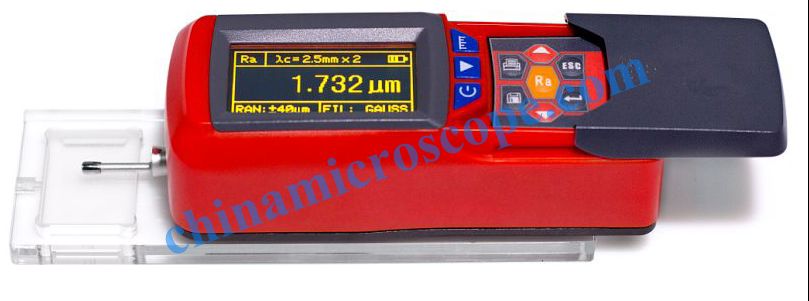

Surface Roughness Tester MIC-L432

Roughness parameter

Ra 、Ry 、Rq 、Rz 、Rt 、RSm 、RS 、Rp 、Rv 、R3z 、RSk 、Rmax 、Rmr

Resolution

0.001μm

Cut-off lengths

0.25mm/0.8mm/2.5mm

Evaluation length

1.25mm/4mm/5mm

Standard

ISO 、DIN 、ANSI 、JIS

Accuracy

≤±10%

Repeat ability

<6%

Sensor

Piezocrystal

Power supply

3.7V Lithium-Ion battery

Operating

0 º -40 º

temperature Weight

440g

Dimensions

119×47×65mm

Optional Accessories

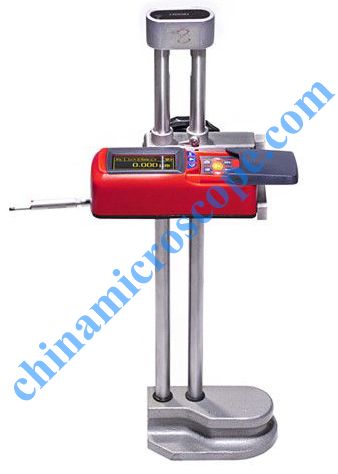

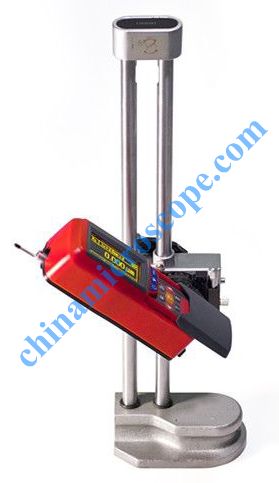

Measurement Platform, printer ,PC analysis software

Standard configuration

Main Unit,Standard sensor,Model for multi-standard groove,Power adapter

Function & Feature:

Design of mechanical and electrical integration is adopted to achieve small bulk, light weight.

Controlled by DSP chip, fast speed of testing with lower consumption and high precision.

Compatible of ISO/ DIN/ ANSI/ JIS standards.

Can measure 13 parameters.

128× 64 DOT matrix LCD displays all parameters and graphs, DSP chip is used to control and process data with high speed and low power consumption.

Results are displayed digital/graphically on the LCD, and output to the printer.

Four filtering methods of RC, PC-RC, GAUSS and D-P,

Built-in lithium ion chargeable battery,with high capacity and unlimited memory efficiency;

Continuous working for more than 20 hours.

English menu operation

Electric quantity indicator, display the charging process.

Can store more than 100 groups of measuring data and wave forms.

Real-time clock setting;

Low power consumption: Auto sleep, automatic shutdown function of saving energy;

All metal shell, firm, small and easy to operate with high reliability.

USB,can be connected with computer and printer.

Application Fields:

Mechanical processing manufacturing industry, especially metal processing manufacturing.Non-metallic

processing and manufacturing.

Electricity, communications, electronics industry. Such as switches on the coupling, integrated circuits,

semiconductor, etc.

It can measure kinds of machining surface, including: oil pump nozzle matching surface of cylinder head,

crankshaft, camshaft, cylinder, cylinder liner, cylinder, piston hole and surface roughness. At the same time can be applied to the PS version of measurement, online detection for setting and adjustment of the machine tool, tool wear loose or machining process.
