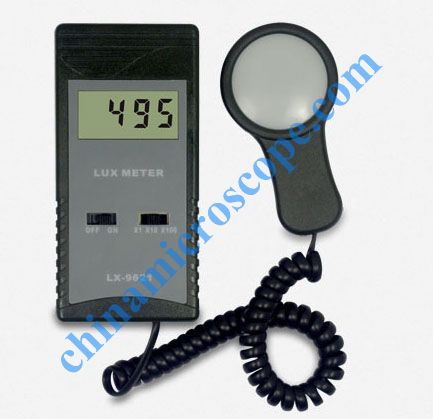

LX-9621 lux meter
The Lux Meter is a specialized instrumentation measuring luminosity, brightness. Widely used in electro-optical sources, research teaching, metallurgy building, industry inspection as well as agriculture researching and illumination control.
Features:
* Digital display gives exact reading with no guessing or errors.
* Separate light sensor allow user take measurement at optimum position.
* Multi-parameter measurement: Lux & FC.
* Wide measuring range and high resolution.
* In build low battery indicator.
* Max value hold function.
* The use of durable, long lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.
General Specifications:
|
Display |
4 Digits, 10 mm LCD |
|
Parameters Measured |
Lux |
|
Measuring Range |
0 ~ 50,000 Lux, 3 Ranges |
|
Max Value Hold Function |
|
|
Battery Indicator |
Low Battery Indicator |
|
Operating Conditions |
Temperature: 0 ~ 50 °C (32 ~ 122 °F) Humidity: < 80 %RH |
|
Power Supply |
4 x 1.5 V AAA Size (UM-4) Battery |
|
Dimensions |
Main Unit: 132 x 64 x 30 mm |
|
Sensor: 96 x 58 x 16 mm |
|
|
Weight |
280 g （Including Batteries） |
Electrical Specifications:
|
Range |
Resolution |
Accuracy (23 ± 5 °C) |
|
0 ~ 1,999 Lux |
1 Lux |
± ( 5% n + 5 d ) |
|
2,000 ~ 19,000 Lux |
10 Lux |
± ( 5% n + 5 d ) |
|
20,000 ~ 50,000 Lux |
100 Lux |
± ( 5% n + 5 d ) |
Standard Accessories:
1. Main Unit
2. Carrying Case(B07)
3. Operation manual
