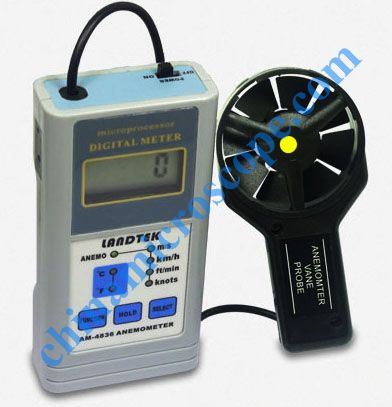

M-4836 digital anemometer
Application: Installation, debug and repair for refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
Features:
* This portable anemometer provides the convenience of a remote sensor separately.
* Multifunctional: the measurement unit can be selected according to different requirements.
* Built in temperature measurement.
* Resistance sensor for fast temp response time.
* Low-friction ball-bearing design allows free vane movement.
* A sensitive balanced vane wheel rotates freely in response to airflow.
* Conventional twisted vane arms, always a source of unreliability has been eliminated.
* DATA HOLD function for storing the desired value on display to read.
* LCD display for clear readout even in bright ambient light condition
*Wide applications: use to check air conditioning & heating systems, measure air velocities, wind speeds, temperature etc.
General Specifications:
|
Display |
10mm(0.4") 4-digits LCD |
|
Measurement Units |
m/s (meters per second) |
|
km/h (kilometers per hour) |
|
|
ft/min (feet per minute) |
|
|
knots (nautical miles per hour) |
|
|
°C，°F |
|
|
Operating Conditions |
Temperature: 0~50°C(32~122°F) Humidity: <85%RH |
|
Power Supply |
1 x 9V6F22 |
|
Dimensions |
Main Unit: 140 x 71 x 32 mm |
|
Sensor Head:72 mmDiameter |
|
|
Weight |
325 g (Including Batteries) |
TestRangeSpecifications:
|
Unit |
Range |
Resolution |
Accuracy |
|
Air Velocity |
0.4~30.0 m/s |
0.1 |
± ( 2%n + 1d） |
|
1.4~108.0 km/h |
0.1 |
± ( 2%n + 3d） |
|
|
80~5910 ft/min |
1 |
± ( 2%n + 2d） |
|
|
0.8~58.3 knots |
0.1 |
± ( 2%n + 2d） |
|
|
Air Temperature |
0~60°C/ 32~140°F |
0.1°C/0.1°F |
0.5°C/0.9°F |
Standard Accessories:
1. Main Unit....................................1 pc.
2. Carrying Case (B02) ................1 pc.
3. Operation manual ................1 pc.
