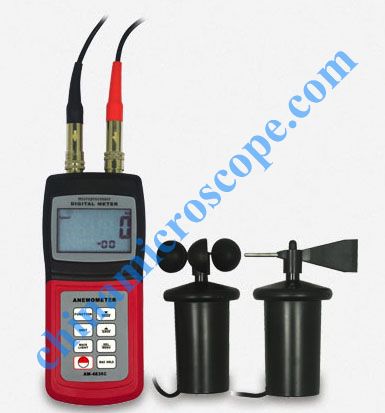

AM-4836C digital anemometer
Widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.
Features:
* Wide applications: use to check air conditioning & heating systems, measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of data
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Display |
0.5" (13 mm) 4-digit LCD |
|
Measurement Units |
Air Velocity: m / s, km / h, ft / min, knots |
|
Air Flow: CMM ( m³ / min ), CFM ( ft³ / min ) |
|
|
Beaufort Scale: Force |
|
|
Wave Height: m |
|
|
Direction: ° from The North Direction |
|
|
Temperature: °C , °F |
|
|
Data Hold |
Maximum Value |
|
Data Memorized |
24 Groups |
|
Sampling Rate |
Reading Per Second Approx |
|
Sensors |
Air Velocity / Flow Sensor: 3-cup Probe |
|
Direction Probe: Low Friction Probe |
|
|
Temperature Sensor: Precision Thermistor |
|
|
Automatic Power Off |
0 ~ 9 Minutes Set by Users |
|
Operating Conditions |
Temperature: -10 ~ 60 °C (14 ~ 140 °F ) Humidity: < 80 %RH |
|
Power Supply |
4 x 1.5v AAA size ( UM-4 ) battery |
|
Dimensions |
Main Unit: 156 x 67 x 28 mm ( 6.1 x 2.6 x 1.1 inch ) |
|
Velocity Sensor: 65 x 65 x 115 mm |
|
|
Direction Sensor: 86 x 69 x 115 mm |
|
|
Weight |
260 g / 0.57 lb（Including Batteries） |
Test Range Specifications:
|
|
Range |
Resolution |
Accuracy |
|
|
Air Velocity |
m / s ( meters / sec ) |
0.4 ~ 45.0 |
0.1 m / s |
± ( 2% n + 0.1 m / s ） |
|
km / h ( kilo-meters / hour ) |
1.4 ~ 162.0 |
0.1 km / h |
± ( 2% n + 0.1 km / h ) |
|
|
ft / min ( feet / minute ) |
80 ~ 8860 |
0.1 ft / min |
± ( 2% n + 1 ft / min ) |
|
|
knots ( nautical MPH ) |
0.8 ~ 88.0 |
0.1 knots |
± ( 2% n + 0.1 nots ) |
|
|
Air Flow |
CMM ( cubic meters / min ) |
0 ~ 9999 |
0.001 ~ 1 |
± ( 2% n + 0.1 m³ / min ) |
|
CFM ( cubic ft / min ) |
0 ~ 9999 |
0.001 ~ 1 |
± ( 2% n + 0.1 ft³ / min ) |
|
|
Beaufort Scale |
0 ~ 12 |
0.1 |
± 0.5 |
|
|
Direction |
0 ~ 360 ° |
22.5 ° |
± 22.5 ° |
|
|
Wave Height ( Meter ) |
0 ~ 14 |
0.1 |
± 0.1 |
|
|
Air Temperature |
14 ~ 140 °F |
0.1 °F |
0.9 °F |
|
|
-10 ~ 60 °C |
0.1 °C |
0.5 °C |
||
Standard Accessories:
1. Main Unit
2. Carrying Case (B02)
3. Operation Manual
4. Velocity Sensor
5. Direction sensor
Optional Accessories:
1. USB, RS-232 Data Cable With Software
2. Bluetooth Data Out put With Software
