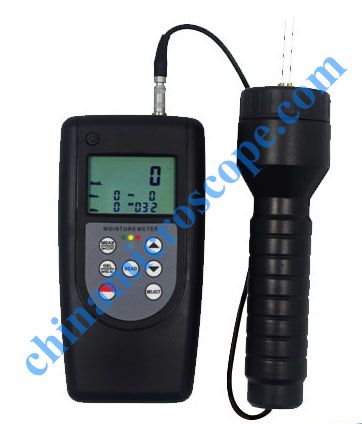

MC-7828CIG Multi Functional Cigarette Moisture Meter
The Multi Functional Cigarette Moisture Meter, is dedicated to the cigarette moisture testing, quickly and accurately measures the moisture of cigarette by testing the conductivity between two pin probes, as a professional instrument for cigarette moisture measurements.
Features:
* Pin Type Cigarette Moisture Meter with boot automatic calibration function.
* Measure the moisture of cigarette by testing the conductivity between two pin probes.
* The selection of different measuring codes makes measurement results more accurate. there is a standard code cd00, also 4 kinds of code cd01, c d02, c d03, c d04, for t he user s’ self calibration according to the specific measured cigarette, in order to improve the accuracy of measurement .
* Digital display gives exact reading with no guessing or errors while a color coded light (LED) indicates the moisture condition of the material. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.
* Dedicated to the cigarette moisture testing. Sensor pins are suitable for cigarettes of different size without adjustments of the pin distance, convenient for the users.
* Can store 120 sets of data, realize of statistic function by testing the average, maximum and minimum value.
|
Meaning |
Pin Type |
|
|
Measuring Range |
0~80 % |
|
|
Accuracy |
±（0.5%n+0.2） |
|
|
Resolution |
0.1 |
|
|
Display |
4 Digits,10 mmLCD, With Color Coded LED Indicator |
|
|
LED Indicator |
Green LED represents a safe, air-dry state |
|
|
Yellow LED represents a borderline state |
||
|
Red LED represents a damp state |
||
|
Calibration |
Automatic |
|
|
Battery Indicator |
LowBatteryIndicator |
|
|
Data Output |
USB, RS-232, Bluetooth |
|
|
Operating Conditions |
Temperature: 0~50 %°C, Humidity: < 90 %RH |
|
|
Power Supply |
4 x 1.5 AAA Size (UM-4)Battery |
|
|
Dimensions |
Main Unit |
140 x 73 x 35 mm |
|
Measuring Pin |
180 x 44 x44 mm |
|
|
Weight |
220 g (Not Including Batteries) |
|
Standard Accessories:
1. Main Unit
2. Carrying Case
3. Operation Manual
4. Measuring Pin
Optional accessories:
1. USB, RS-232Cdata cable with software
2. Bluetooth data out put with software
