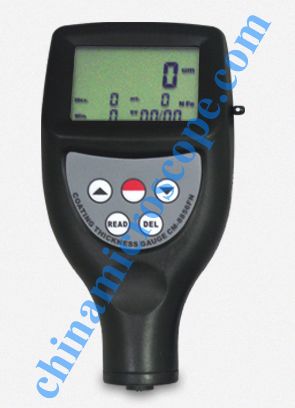

CM-8855 COATING THICKNESS GAUGE

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickle etc.), often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc. The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Features:

* Can store the new data in 99 groups.

* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.）
* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value, and auto recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.

Standard Accessories:

 1. Main Unit

 2. Calibration Base Set (F Type / NF Type) CTG-BS

 3. Calibration Foils CTG-CF (1 set, 4 pieces)

 4. Carrying Case

 5. Operation Manual

Optional accessories:

 1. USB, RS-232Cdata cable with software
 2. Bluetooth data out put with software
