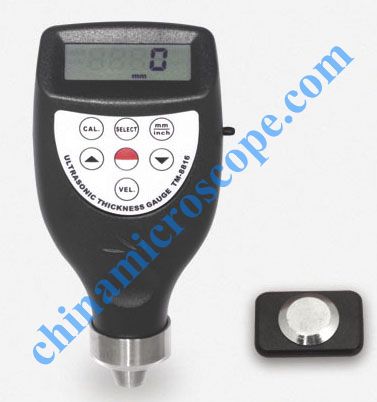

TM-8816 ULTRASONIC THICKNESS METER
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Display |
4 Digit, 10 mm LCD |
|
Operating Principle |
Ultrasonic |
|
Measuring Range (metric / Imperial) |
1.0~200 mm / 0.04~8 inch |
|
Battery Indication |
Low Battery Indication |
|
Sound Velocity |
1000~9000 m/s |
|
Lower Limit Steel Pipes |
Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
|
Calibration Block |
Included |
|
Resolution |
0.1 mm (TM-8816C 0.01 mm) |
|
Accuracy |
± (0.5%n + 0.1) |
|
Operating Conditions |
Temperature: 0~40 °C, Humidity: < 85 %RH |
|
Power Supply |
4 x 1.5 V AAA (UM-4) Battery |
|
Dimensions |
135 x 65 x 27 mm |
|
Weight |
120 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. Calibration Block
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. USB, RS-232C data cable with software
2. Bluetooth data output with software
