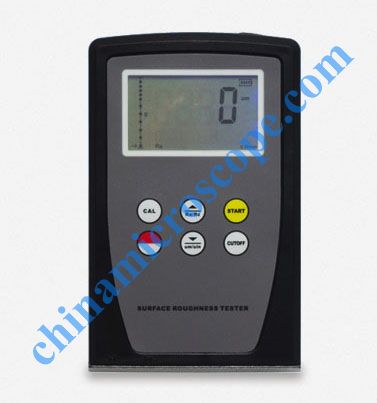

SRT-6100 surface roughness tester
Widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.
Features:
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz.
* Highly sophisticated inductance sensor.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Metric /Imperial Conversion.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Display |
4 digits,10 mmLCD, with blue backlight |
|
|
Parameters |
Ra、Rz |
|
|
Measuring Range |
Ra: 0.05~10.00 um Rz: 0.1~50.0 um |
|
|
Accuracy |
≤ ± 15% |
|
|
Fluctuation of display value |
Not more than 10% |
|
|
Sensor |
Test Principle |
Inductance type |
|
Radius of Probe Pin |
10 um |
|
|
Material of Probe Pin |
Diamond |
|
|
Dynamo-measurement of Probe |
16 mN（1.6 gf） |
|
|
Probe Angle |
90° |
|
|
Vertical Radius of Guiding Head |
48 mm |
|
|
Maximum driving stroke |
12.5 mm / 0.5 inch |
|
|
Cutoff length (l) |
0.25 mm /0.8 mm/2.5 mmoptional |
|
|
Driving speed |
Sampling |
When Length =0.25 mm, Vt =0.135 mm/s |
|
When Length =0.8 mm, Vt =0.5 mm/s |
||
|
When Length =2.5 mm, Vt =1 mm/s |
||
|
Returning |
Vt =1 mm/s |
|
|
Resolution |
0.001 um, if reading ＜ 10um |
|
|
0.01 um, if 10um ≤ reading ≤ 100um |
||
|
0.1 um, if reading ≥ 100um |
||
|
Evaluation length |
1~2 Loptional |
|
|
Auto Power Off |
||
|
Operating conditions |
Temperature: 0~50 ℃ Humidity: ＜ 80 %RH |
|
|
Power Supply |
4 x 1.5v AA size (UM-3) battery |
|
|
Dimensions |
128 × 80 ×30 mm |
|
|
Weight |
280 g |
|
Standard Accessories:
1. Main Unit
2. Small Screwdriver
3. Standard Sample Plate
4. Standard Sensor
5. Carrying Case
6. Instruction Manual
Optional Accessories:
1. USB, RS-232Cdata cable with software
2. Bluetooth data out put with software
