HT-6511 shore hardness testerA.B.C.D.O.OO.DO)

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Features:

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

* With average calculate function.

* Peak value deposit function.

* Under-voltage alarm function.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

Model Information:

  Model

Indenter

Tested Materials

Hardness Value

  A

0.79 Truncated (Frustum) Cone

Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC, leather, etc.

20 ~90 A

  B

R 0.1 Cone

Middle Hard Rubber Materials, Typewriter Rollers, etc.

Above 90 A,  Below 20 D

  C

0.79 Truncated (Frustum) Cone

Plastics and Middle Hard Rubber Materials

Above 90 B, Below 20 D

  D

R 0.1 Cone

Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.

Above 90 A

  DO

R 1.2 Spherical Radius

Plastics and Middle Hard up to Hard Rubber Materials

Above 90 C, Below 20 D

  O

R 1.2 Spherical Radius

Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon

Below 20 DO

  OO

R 1.2 Spherical Radius

 Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials

Below 20 O

  E

R 2.5 Spherical Radius

Hard Sponge, EVA

Above 90 DO, Below 20 D



 Parameters Displayed

  Hardness Result, Average Value, Max. Value

 MeasurementRange

  0 ~ 100 H

  Measurement Deviation

  1% H

  Resolution

  0.1 H

  Auto Switch Off

 BatteryIndicator

  LowBatteryIndicator

  Operating Conditions

  Temperature: 0 ~40     Humidity: 10 ~ 90 %RH

  Power Supply

  4 x 1.5 V AAA Size (UM-4)Battery

  Dimensions

  162 x 65 x28 mm

  Weight

 170 gNot Including Batteries

Standard Accessories

 1. Main Unit

 2. Carrying Case

 3. Operation Manual

 4. Pin Length Test Block

Optional Accessories

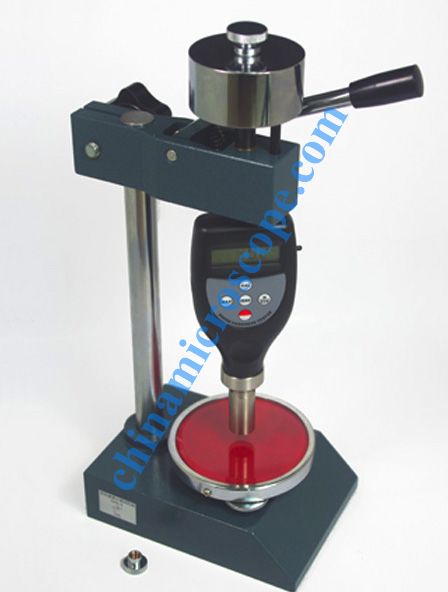

 1. Shore Hardness Tester Measurement Stand

 2. Rubber Hardness Test Block (A / D Type)

 3. USB, RS-232Cdata cable with software

 4. Bluetooth data out put with software
