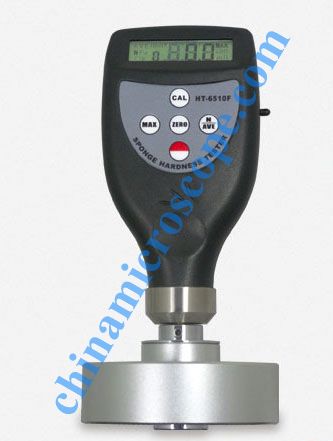

HT-6510Fshore hardness tester
Model HT6510Fis suitable for the hardness measurement of sponge.
Features:
* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Parameters Displayed |
Hardness Result, Average Value, Max. Value |
|
MeasurementRange |
0 ~ 100 HF |
|
Measurement Deviation |
＜ 1% HF |
|
Resolution |
0.1 HF |
|
Spring Force |
455 gf |
|
Sensor Head Diameter |
25mm |
|
Sensor Foot Diameter |
80mm |
|
Auto Switch Off |
|
|
BatteryIndicator |
LowBatteryIndicator |
|
Operating Conditions |
Temperature: 0 ~40 ℃Humidity: 10 ~ 90 %RH |
|
Power Supply |
4 x 1.5 V AAA Size (UM-4)Battery |
|
Dimensions |
162 x 80 x 80 mm(6.4 x 3.1 x 3.1 inch) |
|
Weight |
490 g（Not Including Batteries） |
Standard Accessories
1. Main Unit
2. Carrying Case
3. Operation Manual
Optional Accessories
1. Shore Hardness Tester Measurement Stand
2. Rubber Hardness Test Block (A / D Type )
3. USB, RS-232Cdata cable with software
4. Bluetooth data out put with software
