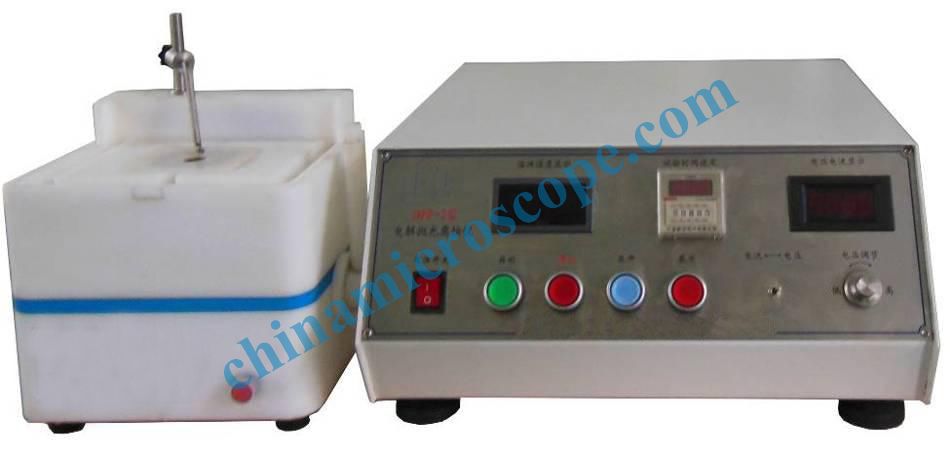

DPF-2 Electrolytic Polishing and Etching Instrument

DPF-2 electrolytic polishing and etching machine is a set of electrolytic polishing and etching function as one of the metallographic sample preparation machines, suitable for use in factories, universities, research institutions and other laboratories.

The machine uses the electrochemical principle to do metallographic sample preparation. Electrolytic polishing and etching metallographic samples prepared to avoid the deformation caused by the mechanical polishing layer, so the organization is true without illusion. Therefore it is the best method of preparation of titanium, aluminum, copper and other non-ferrous metals and high-temperature alloy samples. The instrument is designed to have higher operating voltage and operating current, metallographic preparation for the larger size of the specimen left a large margin, especially suitable for welding metallographic sample preparation.

Main parameters：

Input power：AC220V，10A（max）；

Electrolytic output：DC0~60V / 0~25，continuously adjustable，digital display；

Time：work time can be set；

Electrolyte capacity：300~1000ml；

Electric box size：450×420×230mm

Corrosion workbench：270×230×320mm

Weight：10Kg
