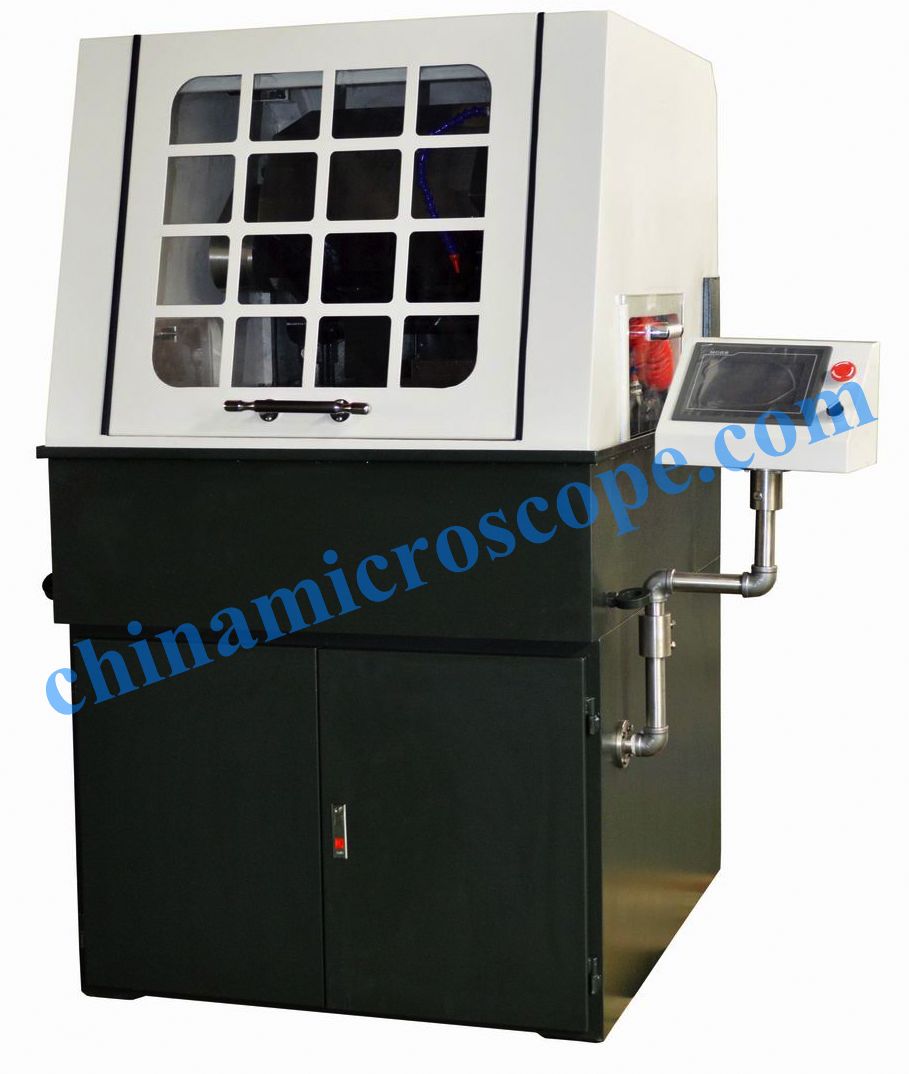

QG-120 Automatic Metallographic Sample Cutting Machine

Description:

     The QG-120 metallographic sample cutting machine has absorbed the advanced PLC technology on the structure and the selection of materials and manufacturing processes. Well-developed a new generation of automatic digitization novel metallurgical equipment, this machine gets good feedback from both the experts and the users.

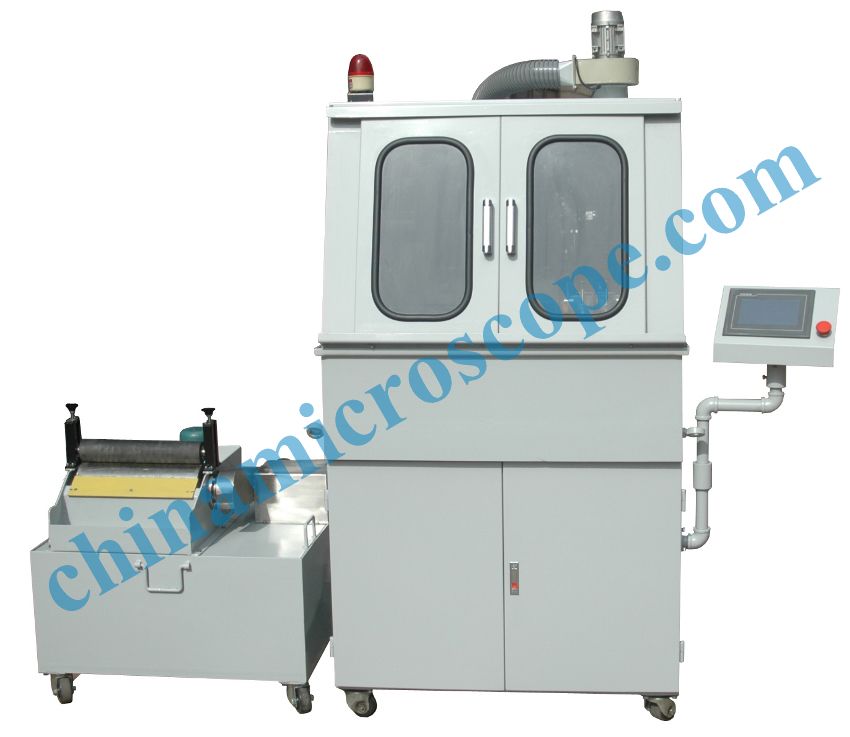

     This machine is mainly made up of the upper cover, the intermediate base, the lower frame and strong cooling system and the X-axis, Y-axis, Z-axis driving mechanism these seven components.

     The upper cover is mainly made to a complete safety studio. There is the left and right door in the front, both with a safety switch on the door. And the user can see the process of cutting through the observation window. Above the upper cover, there is an alarm for complete cutting and machine error. And there is a fan to discharge the working vapor of chamber, keeps indoor clear without fog.

     The intermediate base is mainly used to fix the X axis, Y axis and Z axis three driving mechanism, is made of 12 mm, 10 mm and 8 mm steel plate which has been heat treatment after welding. It has the advantage of stable performance, high precision and durable.

     The lower frame is used to fix the intermediate base and electrical components and there is a tool room in front of the lower frame. The tool room is equipped with the left and the right door, and the bottom of lower frame is equipped with four wheels and four horizontal adjusting bolts. (Note: Before cutting, the work table must be adjusted to the horizontal and the pulley is separated from the ground.)

Main parameters

1. Cutting disc (grinding wheel): ¢ 400 × ¢ 32 ×3, ¢ 350 × ¢ 32 × 2

2. Motor power: 7.5KW

3. Rotating speed: 500-1800r/min

4. Cooling system: Recycle

5. Garbage cleaning of the water tank: Automatic

6. Volume of the water tanker: 220L

7. Cutting mode: Automatic

8. Feeding mode: Go for 15 seconds and stop for 2 seconds (Users can set up their own.)

              Track cutting goes for 1mm and back for 3mm.

9. Feeding speed: 3mm/min, 5mm/min, 8mm/min totally 3 kinds (Users can set up their own.)

10. The vertical (Z-direction) distance (maximum of the cutting wheel): 185 mm

11. The moving distance of the cutting wheel (Z-direction): 185mm

12. The longitudinal (Y-direction) moving distance: 280mm

13. The cutting table (X × Y): 500mm × 350mm

14. Max. Capacity of round cutting: ￠120mm

15. Max. Capacity of rectangular cutting: 220mm×120mm(W × H)

16. Machine form: Vertical

17. Dimensions (L ×W × H): 100cm × 110cm × 170cm

18. Weight: about 600 kg
