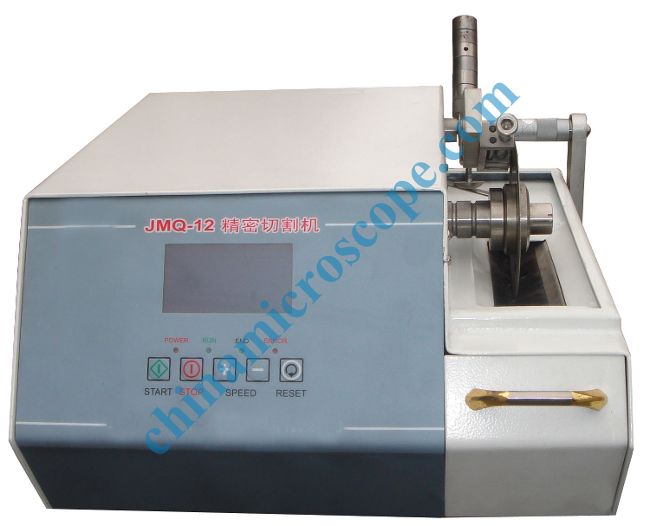

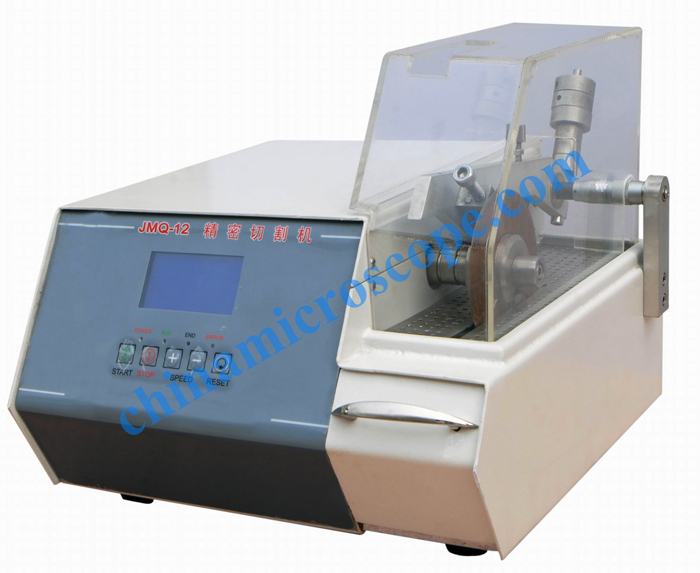

JMQ-12 Low Speed Precise Cutting Machine

JMQ-12 low speed precise cutting machine is mainly used to cut small cylindrical, square metal body electronic circuit board material. The load constant cutting force automatic cutting machine uses weight block, automatically stop when the cutting is complete, using micrometer device to adjust the thickness of the sample cutting to do precise cutting, therefore supporting as TEM sample preparation equipment. JMQ-12 low speed precise cutting machine is speed controllable to avoid burning due to overheating of the cutting sample. The machine is equipped with a strong cooling system. Rotating diamond saw blades in the cutting process brings out of cooling water so that the dicing sheet and the sample material can be cooled, the surface of the sample after cutting is bright and flat without burns. The equipment has easy operation and maintenance and is an excellent device for cutting small material and electronic circuit boards.

Main parameters:

Diamond wheel diameter: Φ100×0.5×Φ12.7mm

Cutting capacity： 25 × 25mm， Φ30mm　

The liquid crystal display mode, a touch pad control

Cutting wheel speed：50〜800rpm（stepless）

Power supply：220V, single-phase，40W

Dimensions：350×380×290mm

Weight：24kg
