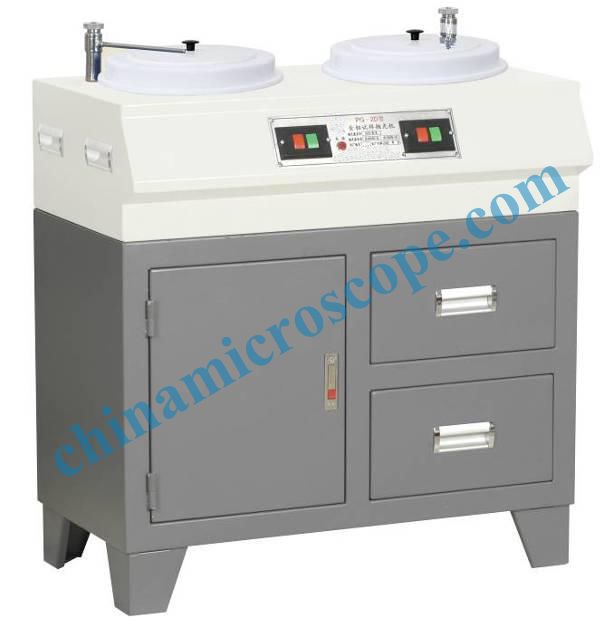

PG-2D Metallographic Sample Polishing Machine

PG-2D is further designed on the base of PG-2C. It has been designed to the division board structure instead of the former vertical structure. And the speed of revolution of the two throwing-pans has also been separately designed to two different speed of revolution: 700T/m and 900T/m from the previous one speed of revolution, so that it could apply to the different demands of speed of revolution when polishing. In addition, the division board structure could also bring a lot convenience.

Main parameters：

Polishing Wheel Diameter：230mm

Platen Speed：650r/min，800r/min

Electromotor：YS7116，0.2kW，380V（220V customized），50Hz

Total Dimension：800×520×940mm

Net Weight：73Kg
