Product Description

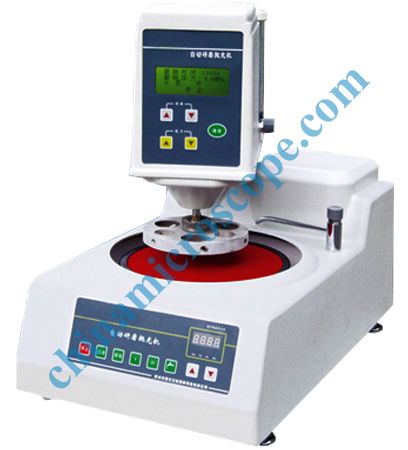

AMP20 automatic grinding/polishing machine is a pneumatic grinding/polishing equipment with high accuracy, low power consumption and automatic test, made according to internationally advanced technology.

Features

1. Pneumatic drive/loading;

2. Digital display of sampling speed;

3. Load pressure and sampling time are adjustable;

4. Grinding-Polishing Disc has two functions of two-step constant speed and stepless speed change;

5. The spindle of grinding-polishing head is stepless speed change;

6. Handsome durable ABS casing and stainless steel standard parts;

7. Equipped with quick-replaceable type grinding-polishing disc and multi-sample holder;

8. Central force loading;

9. Automatic distribution system of large-volume grinding materials;

10. Process multiple samples simultaneously;

11. High reliability and long service life.

Technical Parameters

1. Speed of Grinding-Polishing Disc: 50-600r/min (stepless speed change) or 150r/min, 300r/min (two-step constant speed)

2. Loading Range: 0~0.7Mpa

3. Sampling Time: 0-999 Seconds

4. Max. Diameter of Sample: 30mm

5. Diameter of Grinding-Polishing Disc: 250mm

6. Voltage: 220V 50HZ

7. Dimensions: 660mm×440mm×640mm

8. Weight: 46kg

9. Compression Resistance: ≥1.0Mpa
