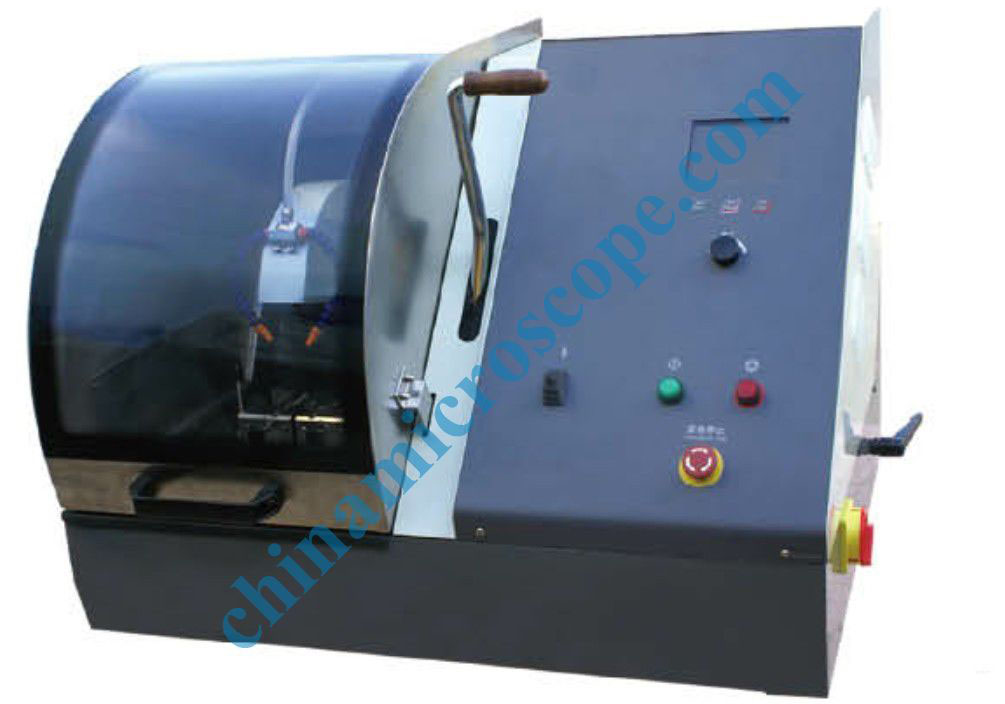

This machine is an automatic/manual metallographic cutting machine. The machine adopts Siemens PLC with a very high reliability, strong control ability. In the aspect of human-computer interaction. It uses the display screen. Meanwhile the machine uses the high precision motor, suitable for cutting various metal, nonmetal material samples in order to observe the metallographic, petrographic structure. The cutting process is automatic/manual interchangeable, low noise, easy operation, safety and reliability. So it is one of the important equipment in modern laboratory of solid material sample.

Automatic/manual cutting machine

Cutting blade for 350mm, with a large cutting bench 400x280mm

Powerful cutting ability, the maximum diameter up to 100mm

A large screen, using the joystick and knob turn/push for simple operation

Constant feed rate to ensure that the minimum deformation

Automatic feed speed function, fast cutting hard material

Rapid positioning and the stop position

T type groove, easy to install different fixture

The corrosion type cutting room

With the function of opening the door for stopping control

To ensure the safety of operating personnel

Technical characteristics

Cutting motor: 3.0KW three-phase motor

Cutting wheel: cutting wheel size: 350x2.5x32mm, speed: 1000rpm-3000rpm

Cutting table: cutting table size: 400mm(W), 280(L), moving distance: 150mm

Dimension and weight: 1050mm(W), 950mm(L),710mm(H), 350KG

Power supply: input voltage:  three-phase AC380V, input total power: 4KW

Water tank: capacity 60 liters
