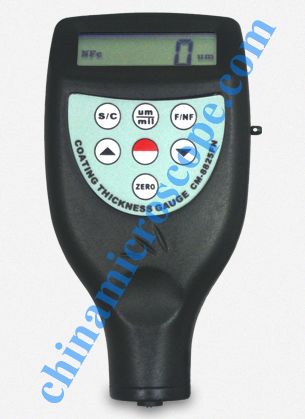

CM-8825FN COATING THICKNESS GAUGE

The F probes measure the thickness of  non-magnetic materials (e.g.  paint, plastic, porcelain enamel,  copper, zinc, aluminum, chrome etc.) on magnetic materials  (e.g. iron, nickle etc.) . often used to measure the thickness of  galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc. The N probes measure the thickness of   non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous（Notice：Continuous mode is convenient to measure the

coating thickness of curved objects and tiny objects.）

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value, and auto recognize the substrate.

* Operation process have buzzing reminder, while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements.

 Standard Accessories:

 1. Main Unit

 2. Calibration Base Set (F Type / NF Type) CTG-BS

 3. Calibration Foils CTG-CF (1 set, 4 pieces)

 4. Carrying Case

 5. Operation Manual

Optional accessories:

 1. USB, RS-232Cdata cable with software

 2. Bluetooth data out put with software
