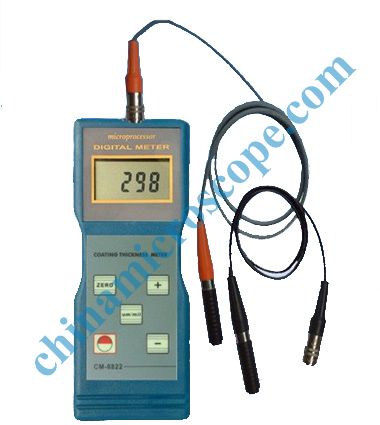

CM-8822
COATING THICKNESS GAUGE
Application:
This tester is used for measuring thickness
and corrosion of pressure vessels, chemical equipment, boilers, oil storage
tanks, etc. in industries of petroleum, ship building, power station, and
machine manufacturing.
Features:
The F probes measure the thickness of
non-magnetic materials. The N probes measure the thickness of non-magnetic
coatings on non-magnetic metals.
Operating Principle
Magnetic Induction / Eddy Current
(F / NF)
Measuring Range
0~1000 um / 0~40 mil
Resolution
0.1 um / 1 um
Min. Radius Workpiece
F Type: convex1.5 mm/ concave25 mmNF Type: convex3 mm/ concave50 mm
Min. Measuring Area
6 mm
Min. Sample Thickness
0.3 mm
Accuracy
± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial
Convertible
BatteryIndicator
LowBatteryIndicator
Operating Conditions
Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply
4 x 1.5 V AA (UM-3)Battery
Dimensions
161 x 69 x 32 mm
Weight
250 g (Not Including
Batteries)
Standard
Accessories:
1. Main Unit
2. Probe (F Type / NF Type)
3. Calibration Base Set (F
Type / NF Type) CTG-BS
4. Calibration Foils CTG-CF (1 set, 4
pieces)
5. Carrying Case
6. Operation Manual
Optional
accessories:
Other range 0~200um to 15000um
