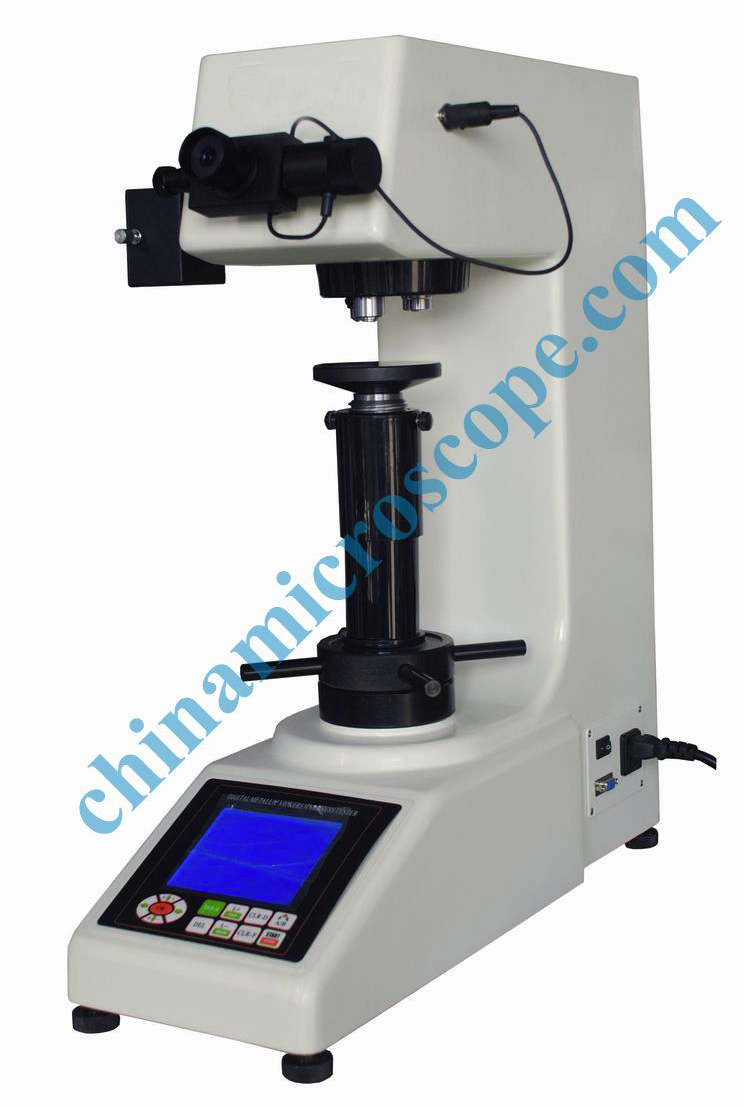

MHV-5Z10Z30Z50Z Vikers hardometer
Description:
1. The Digital Vickers Hardness Tester is a new type high-tech product combining the optical, mechanic and electronic techniques; with a large LCD screen display, a novel and pleasing appearance, direct-viewing, operational functions and reliability, hence it is an ideal instrument for the testing of Vickers hardness. It has an auto-shifting device between indenter and objectives.
2. The hardness tester is adopted such techniques as a precise design in the field of mechanics, a higher amplification objectives and digital micro eyepiece in optics field, etc.
3. Due to adopt the closed-circuits in loading control system, it makes the accuracy of test force higher, the repeatability and stability of displaying values better. It is the initiate of home to adopt this system on Vickers hardness tester.
4. By means of touch keys on the operating board, the dwell time for test force can be preset, the luminosity of light source can be regulated, Vickers or Knoop measuring method can be selected, hardness scales can be exchanged and files can be stored, etc. All the testing data such as the indentation length, the hardness value, the number of the measurements, and year, month, day, and time are all shown on the LCD screen. It can test result and handle data, and output by printer as well.
5. According to the particular requirements of the client, the instrument can be equipped with CCD device to enable the video measuring and auto image measuring. The instrument is suitable for testing the micro and thin pieces, the parts with the permeated and coated surface, it is also fit for testing Vickers hardness value for the crisp materials such as the agate, glass and it is, therefore, an ideal hardness measuring instrument for the scientific research institutes, the universities, the industrial production units and the metrological institutes using with for studying and measuring.
Main Technical Specifications
1. Test forces:
|
MHV-5Z |
2.942、 4.903、 9.807、 19.61、 24.52、 29.42、 49.03N （0.3、 0.5、 1、 2、 2.5、 3、 5 kgf） |
|
MHV-10Z |
2.942、4.903、9.807、19.61、24.52、29.42、49.03、98.07N （0.3、 0.5、 1、 2、 2.5、 3、 5 、 10 kgf） |
|
MHV-30Z |
4.903、9.807、19.61、24.52、29.42、49.03、98.07、196.1、294.2N （0.5、 1、 2、 2.5、 3、 5 、 10 、 20、 30 kgf） |
|
MHV-50Z |
9.807、19.61、24.52、29.42、49.03、98.07、196.1、294.2、490.3N （1、 2、 2.5、 3、 5、 10、 20、 30、 50kgf） |
2. The repeatability of displaying values for hardness tester (see appendix table 1) and the allowed tolerance of displaying value (see appendix table 2)
3. Test force application method: automatic loading, dwelling and unloading
4. The shifting method between indenter and objectives: auto shift
5. With built-in printer
6. Total Amplification of the measuring Microscope:
|
Model |
Micro Eyepiece |
Objectives |
Total Amplification |
|
MHV-5Z |
10× |
20×、40× |
200×、400× |
|
MHV-10Z |
10×、40× |
100×、400× |
|
|
MHV-30Z |
10×、20× |
100×、200× |
|
|
MHV-50Z |
7. Min test unit:
|
Total Amplification |
Min. Test Unit |
|
100× |
0.25 μm |
|
200× |
0.125 μm |
|
400× |
0.0625 μm |
8. Dwell time of the test force: 0~60s (5 second as a unit)
9. Max height of the specimen:170 mm
10. Distance between the center point of the indenter and the exterior panel:130mm
11. Weight of the main body:31kg
12. Power source: (110~220) AV, (50~60) Hz
13. Overall dimension (L×W×H): (530×210×630) mm
