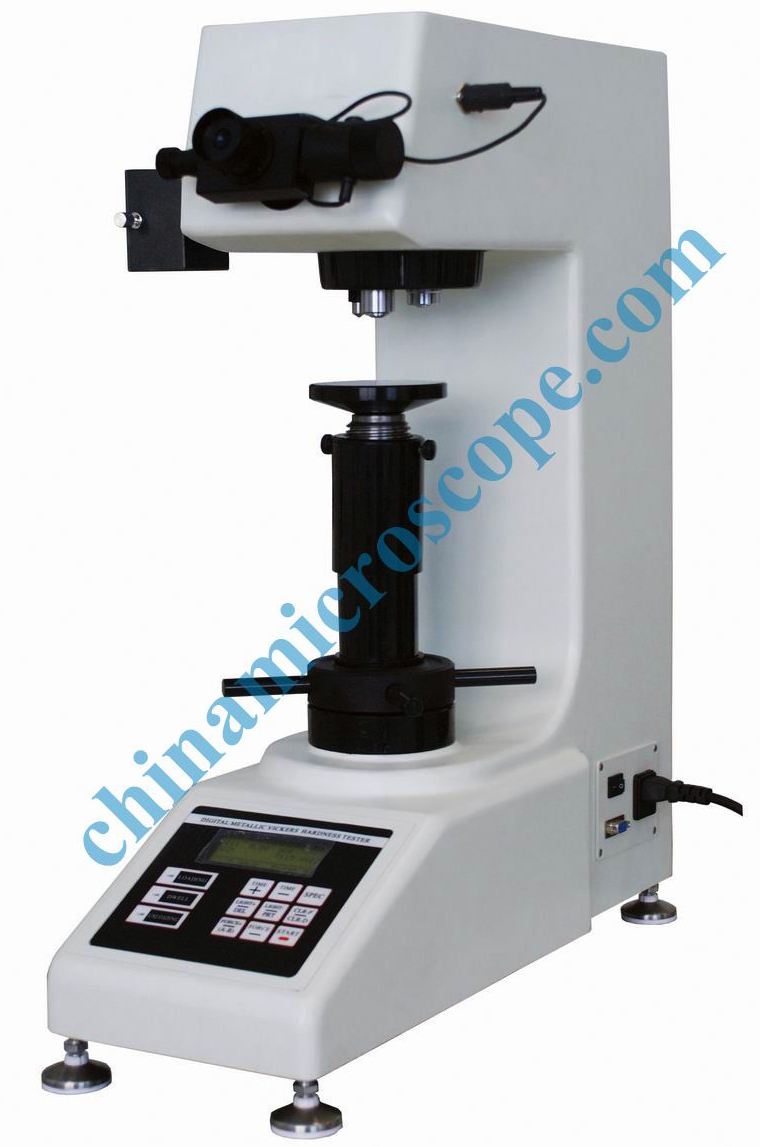

HVS-5103050(P)(Z)
Vikers hardometer
Description:
● This Vickers Hardness Tester made with a unique and precision design in the field of mechanics, optics and light source is able to produce a clearer indentation and hence a more precise measurement.
● By means of a 10x lens, 20x lens or 20x lens and 40x lens , the tester has a wider measurement field and a broader usage range. The set of lens (2 pieces lens) can be selected according to the user’s requirement.
● Equipped with a digital microscope, it shows the measuring methods, the test force, the indentation length, the hardness value, the dwell time of the test force as well as the number of measurements - all shown on its LCD screen , without inputting the value of diagonal length for the indentation and look up the hardness values from hardness table.
● With a special thread interface, it can be linked with video measuring device and indentation automatically measuring device without changing optical path.
● By means of closed-circuit system for control, CPU controls testing force to load, dwell and unload, the sensor feedback information, therefore the lost of testing and hence the testing force more accuracy.
● The instrument represents today’s world
advanced level among the products of the same kind in
● Ferrous metals, non-ferrous metals, IC thin sections,
coating, ply-metals；
● Glass, ceramics, agate, precious stone, thin plastic
sections, etc.
● Hardness testing such as that on the depth and the trapezium of the carbonized layers and quenched layers.
Technical Features and Standard add accessories
|
Type |
HVS-5/5P/5Z |
HVS-10/10P/10Z |
HVS-30/30P/30Z |
HVS-50/50P/50Z |
|
|
Testing Forces |
N |
2.942,4.903, 9.807,19.61, 24.52,29.42, 49.03 |
2.942,4.903, 9.807,19.61, 24.52,29.42, 49.03, 98.07 |
4.903,9.807, 19.61,24.52, 29.42,49.03, 98.07,196.1, 294.2 |
9.807,19.61, 24.52,29.42, 49.03,98.07, 196.1,249.2, 490.3 |
|
KGF |
0.3, 0.5, 1, 2, 2.5, 5 |
0.3, 0.5, 1, 2, 2.5, 3, 5, 10 |
0.5, 1, 2, 2.5, 3, 5, 10, 20, 30 |
1, 2, 2.5, 3, 5, 10, 20, 30, 50 |
|
|
Carriage Control |
Automatic（loading/holding-up of loading /unloading） |
||||
|
Holding Time |
（0~60）s |
||||
|
Amplification of the microscope |
200X, 400X |
100X, 400X |
100X, 400X |
100X, 200X |
|
|
Min. graduation value of the test drum wheel |
0.0625um |
0.125um |
|||
|
Testing field |
1HV~2967HV |
||||
|
Lens/Indenter switch |
With Motorized Turret ( Z Type with Hand Turrent) |
||||
|
Dimension of the X-Y table |
100X100mm |
Without |
|||
|
Movement field of the X-Y table |
25X25mm |
Without |
|||
|
Max. Height of the specimen |
170mm |
||||
|
Max. width of the specimen |
130mm |
||||
|
Light source |
Halogen lamp |
||||
|
Power |
110V/220V，60/50HZ |
||||
|
Objective |
The objective 10x, 20x, 40x can be selected according to user’s requirement |
||||
|
Standard accessories |
X-Y stage test table |
Largest test table, “V”Shape test table |
|||
|
10X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block |
|||||
|
Dimension |
535X225X580mm |
||||
|
Weight |
Gross weight： 47KgNet weight：31Kg |
||||
