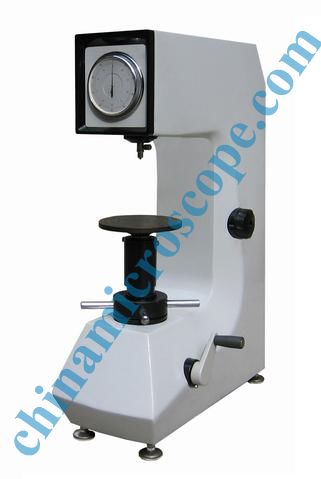

Feature & Use

Optimized mechanical frame. Manual testing process, no need for electric controlling

It’s steady and reliable for testing of curved surface

Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

It’s suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece:210mm

Depth of throat:165mm

Min. scale value: 0.5HR

Dimensions: 522 x 293 x729mm

Weight: approx.98kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Diamond cone penetrator: 1 pc

1/16”steel ball penetrator: 1 pc.

Rockwell standardized block: 5 pcs.
