Specifications:
Display model |
Separated |
Optical quality |
High quality |
Field of view |
Maximum 53° |
NO pupil scatter photographing |
support |
Minimum pupil diameter |
3.3mm |
Color digital collector |
≧12M pixel |
Black and white collector |
≧1300 line |
Radiography method |
Flash radiography |
Dynamic radiography videoing |
|
Observation illumination |
Infrared light |
Refraction compensation range |
≧±15D |
Outside fixed viewing target |
|
Five points fixed viewing target |
|
Nine points fixed viewing target |
Optional |
Auxiliary para-position |
Double point auxiliary focusing |
Focusing method |
Manual & Automatic |
Exposure method |
Automatic |
Medical internet |
Dicom 3.0 interface |
Second display screen |
Optional |
Eye position recognition |
Automatic |
Optical incline angle |
Horizontal ±30° Vertical ±12.5° |
Working distance |
42mm±2mm |
Operation stage |
High precision stage |
Minimum pupil photograph diameter3.3mm More patients can be checked Applicable for ophthalmology section use, physical examination, diabetes patients fundus check. |
|||
Inner fixed digital collector Offer12Mpixel high definition color fundus image |
|||
|
|||
High resolution radiography image Can clearly view Macular arch ring and other Small vessels tiny nidus, good for laser treatment. |
|||
|
|||
|
Field of view single picture can reach maximum 53° Assure precise fundus checking, avoiding missed diagnosis ratio, elevating checking ratio |
||
Double radiography model 1. Flash radiography, infrared light observation, flash illumination, not dazzling for patients with good cooperation 2. Continuous dynamic radiography, can record early full-fill process |
|||
|
|
||

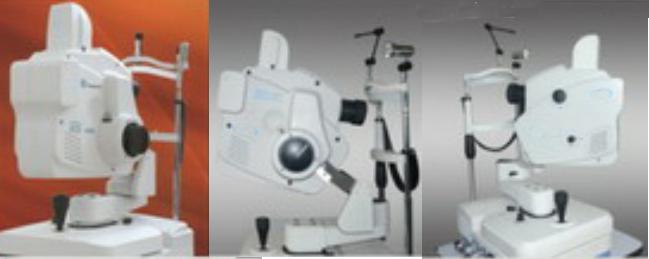

Optical incline with inner, exterior fixed viewing target, can photographing 180°fundus Optical incline angle Horizontal ±30° Vertical ±12.5° |
|||
|
|||

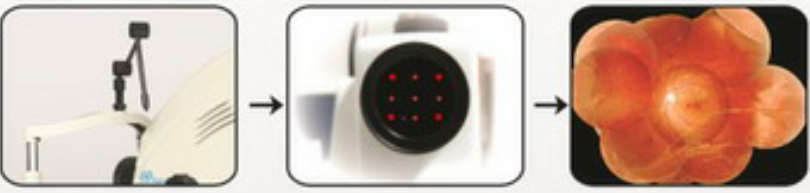

Newly designed five points, nine points inner fixed viewing target, guiding the eye movement, shooting from all angle |
|||
|
|||
|
