Features

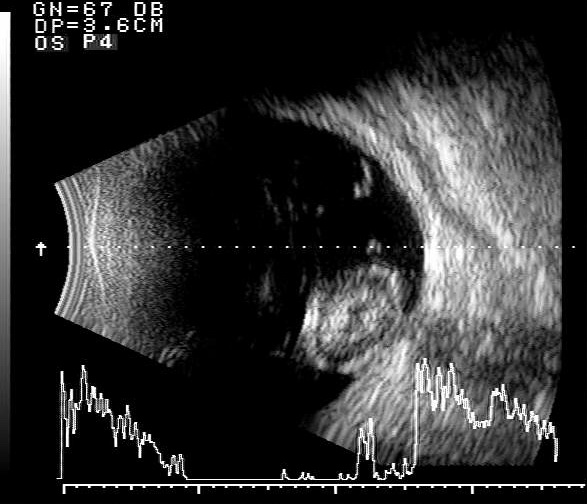

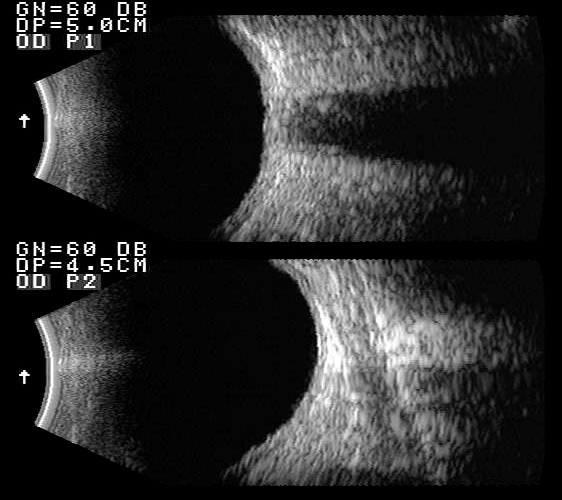

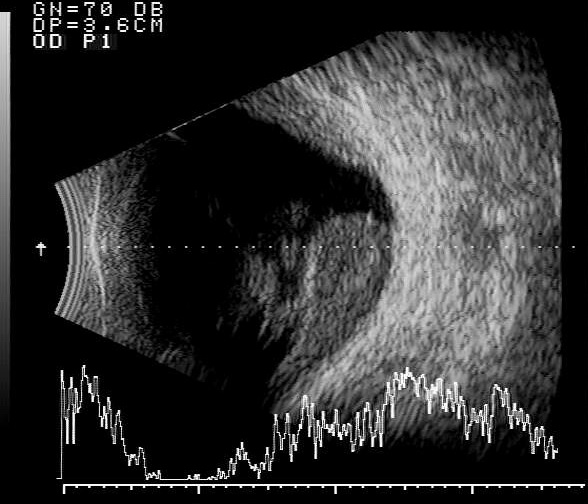

Imaging Mode: B, B+A, B+B, A

High Resolution Images

Memory: up to 4 Images

Zoom: 8 Steps

Image Post Processing

Distance Measurement

7” non-interlaced CRT Monitor

Foldable Keyboard & Portable Design

Trackball for Easy Measurement and Operation

Real-time Clock

Optional Image Output: Video Printer or Workstation



Specifications

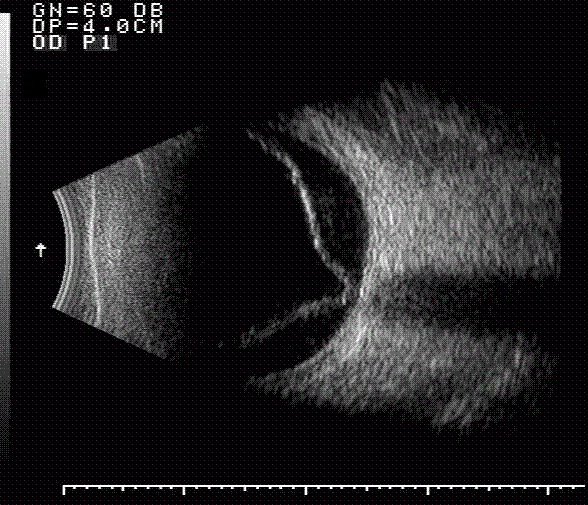

B-SCAN

Probe Frequency: 10MHz

Scanning Angle: 53°

Total Gain: ≥98dB, adjustable

Resolution: axial ≤ 0.2mm, lateral ≤ 0.4mm

Zoom: 31mm ~ 63mm, 8 steps adjustable

Post Processing: 4 groups of curves (Linear, Logarithmic, Exponential, S-curves)

Multi-groups of Electronic Calipers for Distance Measurement

Various Area Measurement Methods

Gray Scale: 256 levels



A-SCAN

Probe: 10MHz with Fixation Red Light

Resolution: 0.01mm

Gain: ≥ 98dB with an adjustable range of 0 ~ 59dB

Biometry Accuracy: ≤ ±0.06mm

Measuring Range: 16 ~ 39mm

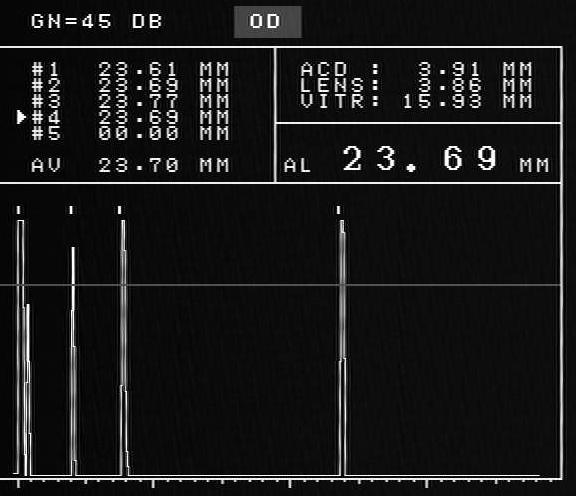

Measuring Parameters: Anterior Chamber Depth, Lens Thickness, Vitreous Length, Axial Length

5 Different Measuring Modes: Automatic (Normal, Dense Cataract, Aphakic and Pseudo-aphakic) &Manual

5 Axial Readings

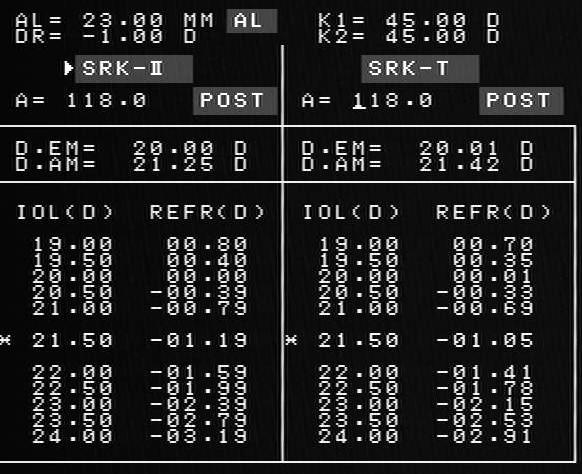

IOL Formula: SRK/II, SRK-T, BINKHOST-II, HOLLADAY, HOFFER-Q, HAIGIS



Others

AC 100 ~ 240V, 50/60Hz

Weight: 10Kg

Dimension: 360 x 300 x 260 mm
